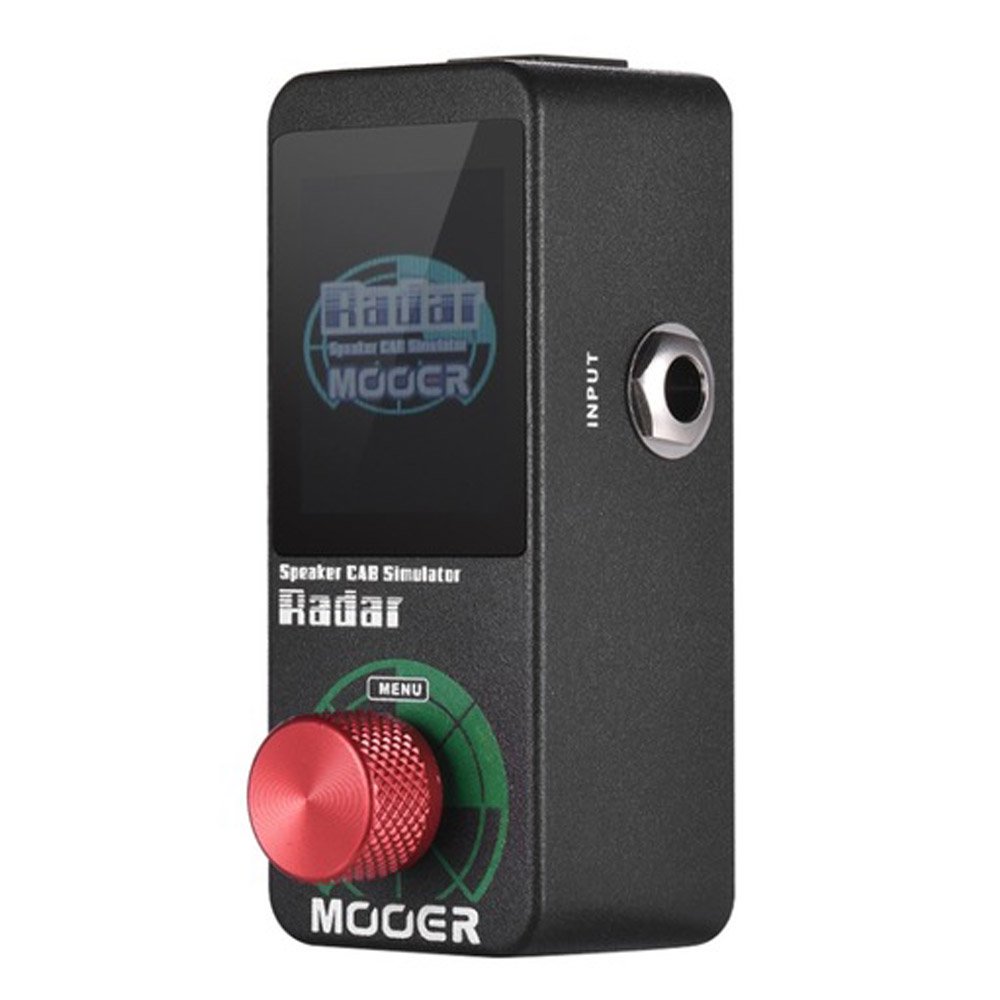

MOOER MSS1 Radar Guitar Effects Pedal Professional Speaker Simulator with 30 Cab Models 11 Mic Models



The MOOER RADAR is a full-featured professional speaker simulator which can be a permanent resident at the end of your pedalboard. Not only does it carry 30 cab models but it also has optional microphone and power amp simulation. Ideal for recording or hooked up to your favourite headphones for practice. The RADAR will transform your pedalboard into a complete guitar rig.

Features: -30 different speaker cab models-11 mic models-4 power amp models-Customizable EQ stage-Capable of loading custom IRS-Store and recall up to 36 user presets-Connect to PC editor via USB-Supports headphones and lineout

Specifications:

Input: 1/4” mono audio jack.(Impedance: 100kΩ)Output: 1/4” mono audio jack (Impedance: 470Ω)             1/8” stereo audio jack (Impedance: 10Ω)Sampling Rate: 44.1KSampling Accuracy: 24bitSignal to Noise Ratio: 100dBFrequency Range: 20Hz~20KHzPower Requirements: 12V DC Only use the power supply providedCurrent Draw: 300mADimensions: 93.5mm(D) x 42mm(W) x 52mm(H)Weight: 150gSupport : Windows 7/8/10; Macc 10.9 or Higher

Package List:
 1 * Effect Pedal1 * Power Adapter1 * Users Manual
FIRMWARE UPDATE: -Connect your RADAR to the computer using a USB cable-Press and hold the “MENU” and power on the RADAR-This will boot RADAR into “Update Mode”-Open the MOOER STUDIO FOR RADAR software-Press the “START” button and wait for the update to complete
NOTE:
Please download the PC software from: http://www.mooeraudio.com/companyfile/Radar-Downloads-140.html
