Specifications:
Output:
DC Voltage: 12V
Current: 130A
Rated Power: 1600W
Load Regulation rate: ≤2%
Linear Regulation rate: ≤1%
Power off Protection Trip Time: ≥10mS
Output ripple and noise: ≤180mVp-p (Limit bandwidth of 20MHz)
On/Off machine overshoot: ≤±5%
Rising time: ≤100ms
Starting time: ≤3S
Output load dynamic response: over adjustment<±5%;
Dynamic response time: <200us. (REF)
Input:
Voltage Range: 176-264V
Frequency: 50/60Hz
Max. Current: 15A
Protection:
Input Low-voltage protection point: <180V
Input Low-voltage recovering point: <185V
Output Short Circuit: Yes
Output Overcurrent: Yes(130-160A)
Input Overtemperature Protection: Yes
Environment Conditions:
Operating Temperature: -40~50 ºC
Storage Temperature: -40~85ºC
Operating Humidity: 5% - 95% relative humidity (non-condensing)
Storage Humidity: 0~95% (non-condensing)
Altitude: ≤5000m
Cooling: Forced-air cooling
Structure:
Weight: apporox. 1906g.
With 5 pairs of 6-pin PCI-E power connectors, 10 in total.
Dimensions: approx. 255mm*91mm*45mm.
Application: For S9 (12.5T / 13T / 13.5T), S7 and Antminer full range of mining machine.
Package Included:

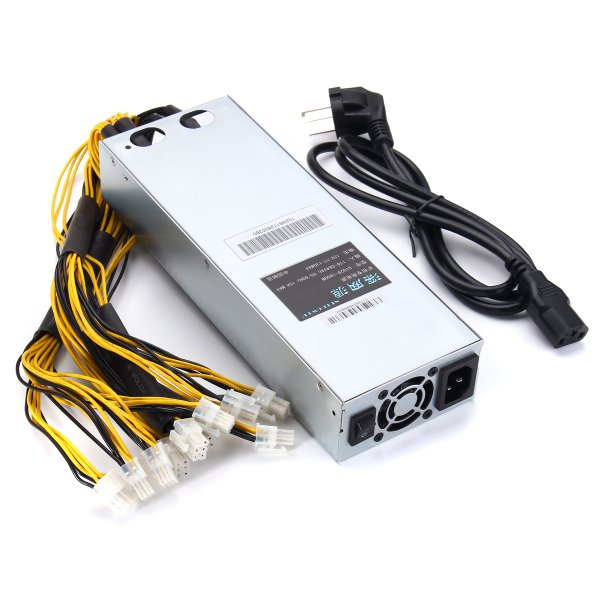

1x Mining Machine Power supply
