$60.17
Add to Cart

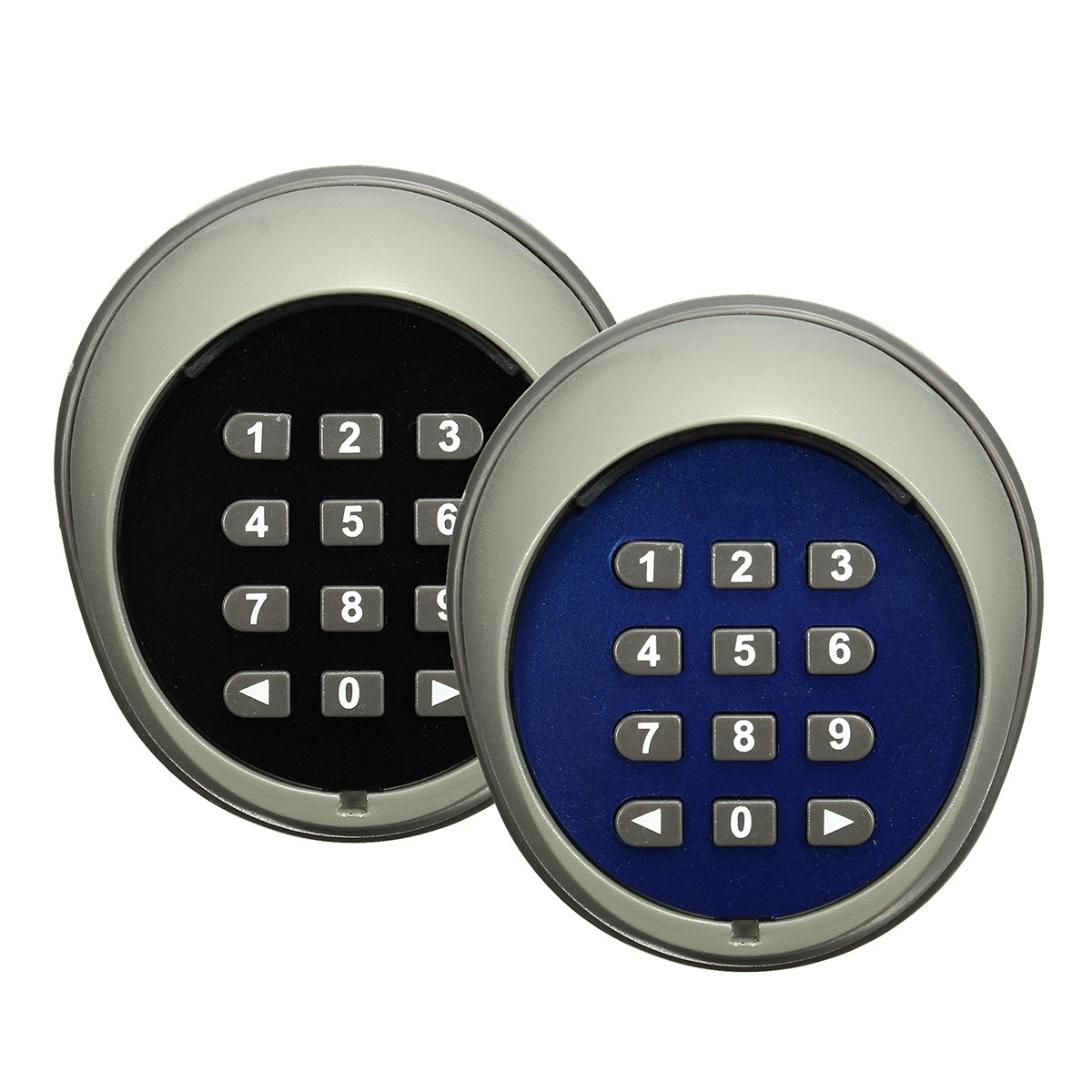

ALEKO 433MHz Backlight Wireless Keypad Universal Remote Control Switch For ALEKO Gate Door Access
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specifications:
ModelKP-01ColorBlack / BlueMaterialPlasticSize85×75×35mm / 3.3x3x1.4"Power6VDC 2 CR2032 (230mAh) lithium batteriesBattery lifeAbout 2 years, 10 times a dayWorking frequency433.92 MHz +/-75KHEmission powerAbout 1mWEncoding formatHCS101 standard formatWorking temperature-10~+55 CDigit number0 to 8 bitsLaunch distanceOpen Distance 200 meters; indoor distance 35 metersProtection gradeIP54
Product description: -This is a dual channel transmitters that are activated only after having entered a Suitable combination.
-The units are designed for installation in indoor or outdoor locations that ensures the utmost security because the transmitted code is changed at each transmission session.
-The estimated transmission range is 200 m in open space and 35 m indoors
-The units are designed to ensure battery life equivalent to an estimated 2 years of operation considering 10 transmissions/day
Installation:
-Before physically installing the it in their mouning position it is good practice to perform a practical test to assess their functionality and effective range.
-Consider that range may be up to 25 or 30% less when battery power is low
positioning:
-Apart from the distance from the receiver, the units should not be positioned in the vicinity of or-worsestill-in contact with metal structures, which could otherwise exert a signal shielding effect. Thanks to the enclosure protection rating of IP 54, the digital selectors can be installed outdoors if required.
Audible signal status:
-1 short beep-Keypad tone-1 long beep-Modification of combination confirmed (or send the signal after enter the correct password )-5 short beeps-Error during combination input or combination edit operation-2 low beeps-Battery low warning signal New batteries required
Method of use
-The use of the keypad is based on "combinations", i.e. numbers of from 1 to 9 digits that the user is required to key in by means of the keys.Once the combination has been entered the user then presses confirm key3 or 4 to transmit the activation command to respectively.
-Receiver channel 1 if the user presses3
-Receiver channel 2 if the user presses4
-The command will be transmitted only when a valid combination has been entered ,if an incorrect combination has been entered the selector will emit an error, warning signalwhen the confirom key is pressed
-The combination entered must be exact,if, for example:the correct combination is 0422, the following attempts will be interpreted as errors:422,10422, 04222
-Therefore, if the user inadvertently presses the wrong key,when entering a combination, combination key3 or 4 should be pressed immedliately to generate the error tone,after which the correct combination can be entered starting from the beginning again
-While entering the combination no more than 6 seconds can be allowed to elapse between keystrokes,after which interval the combination must be re-entered starting from the beginning.
-The units are factory programmed with a standard combination to activate channel one and a standar combination for channel two
The factory set combinations are as follows: -1a combination to transmit the code associated with the 3 key
-When the unit is used for the first time this combination is11 -2a combination to transmit the code associated with the 4 key
-When the unit is used for the first time this combination is 22
ModelKP-01ColorBlack / BlueMaterialPlasticSize85×75×35mm / 3.3x3x1.4"Power6VDC 2 CR2032 (230mAh) lithium batteriesBattery lifeAbout 2 years, 10 times a dayWorking frequency433.92 MHz +/-75KHEmission powerAbout 1mWEncoding formatHCS101 standard formatWorking temperature-10~+55 CDigit number0 to 8 bitsLaunch distanceOpen Distance 200 meters; indoor distance 35 metersProtection gradeIP54
