Description:

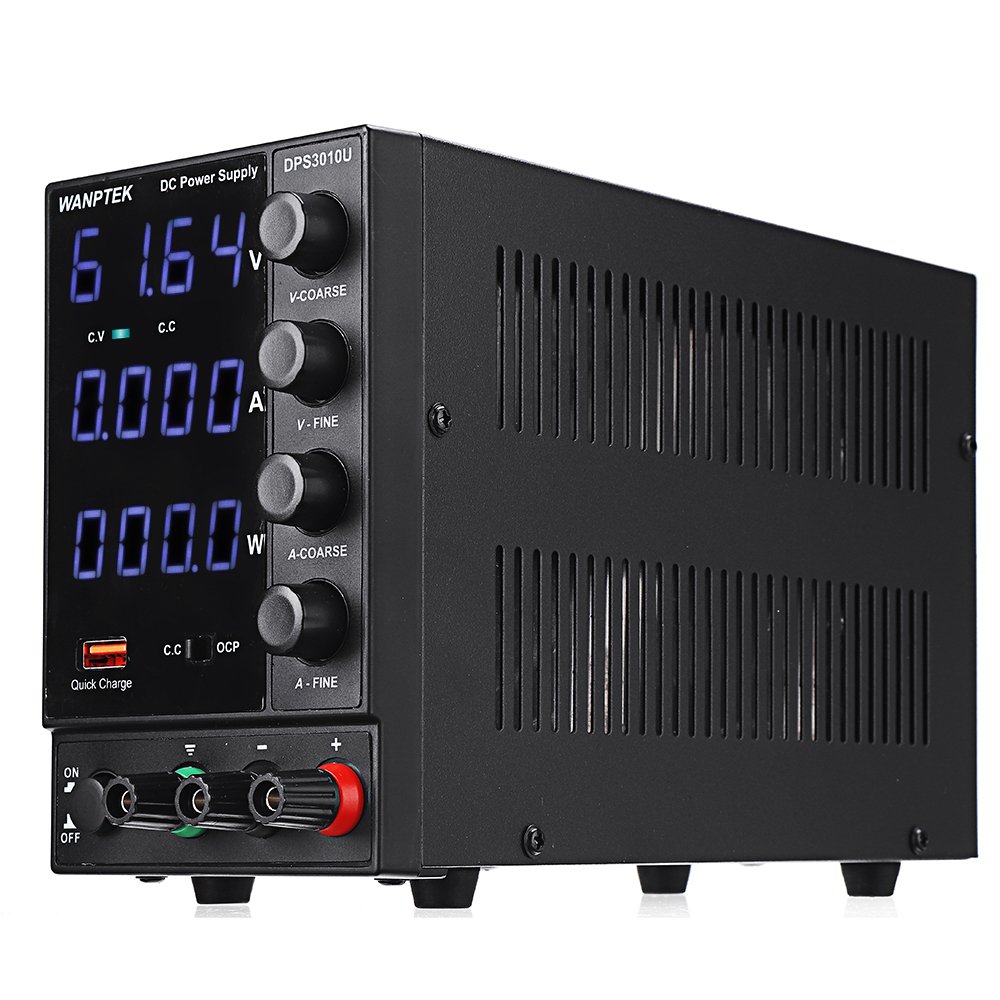

DPS series product is a three-window four-position display high-precision switching DC stabilized power supply
It can display voltage, current and power at the same time.
The products are widely used in mobile phone repairs, computer repairs, schools and production lines.
The output voltage and output current can be continuously adjusted between 0 and the nominal value.
The stability and ripple factor of the power supply are very good, with USB fast charging function and perfect short circuit protection circuit.
Its small size, beautiful design, convenient operation, can work at full load for a long time, and it is very popular among users.


Specification :

BrandWanptek
ModelDPS3010U
Input Voltage110V/220V Regulated В±10% 60Hz /50HzOutput Voltage0-30VOutput Current0-10AWattage300WMore FunctionUSB fast charge, support multiple fast charge protocolsThree DisplaysCurrent(0.001) / Wattage(0.01) / Voltage(0.01) DisplayProtection
- Current limit protection
- Short circuit alarm stop output
- Self-recovery

Voltage/Current stability
0.1%В±3mV
Load stability
0.2%В±3mV
Ripple voltage
≤0.5% Vp-p
Recovery time≦500 Ојs(50% load change, minimum load 0.5A)Ripple & Noise≦5mVrms, 100mVp-pTemperature Coefficients≤100ppm/в„ѓOperation Temperature &Humidity 0В°C to 40В°C, <80%Storage Temperature & Humidity -10В°C to 70В°C, <70%SizeL225mm X W90mm X H145mm
Weight1.8Kg



Features :
- Display accuracy: 0.5% В± 3 characters
- 0.56 inch white light four digital tube display- 110V/220V Regulated switching power supply.- USB fast charging function, support multiple fast charging protocols.
- Short circuit protection function, short circuit stop output.
- Small size, light weight and high power density.
- Constant pressure and constant current switch automatically.
- Three LED display of voltage, current and power, high precision.
- Temperature controlled fan dissipates heat, has low noise and long life.


Application field:
1. Production line test.
2. Mobile phone, computer, electrical appliance maintenance.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratory, scientific research teaching.
6. All other occasions requiring DC power supply.


Package included:

1X110V/220V Adjustable DC Power Supply
1X Plug Power Cord
1X Crocodile Clip
1X Warranty Card1X English Manual
