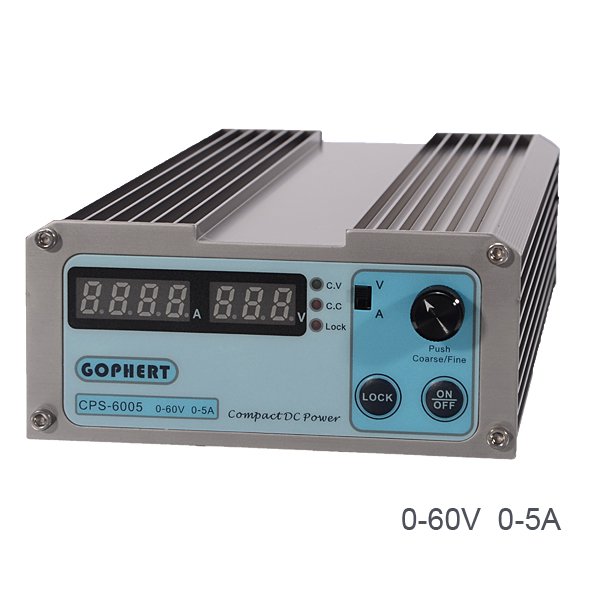

GOPHERT CPS-6005 60V 5A 110V/220V Mini Digital Adjustable Switching DC Power Supply
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description: CPS-6005 60V 5A DC Power Supply Digital Adjustable Switching 110V/220V Features: Top performance cost ratio
High power density, smallest and compact
Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
The current meter displays mA automatically when current below 1A
High efficiency, up to 88%.
Low Ripple & Noise: =< 30 mVp-p.
Output ON/OFF
LOCK switch
110V/220V voltage input selectable
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection
Specification: ModelCPS-6005Operation Voltage Range95-132Vac OR
198 – 264VacOperation Frequency Range45 – 65HZOutput Voltage Range0 – 60VOutput Current Range0 – 5AEfficiency (220Vac/full load)≥ 87%Full Load Input Current(220Vac)≤1.4ANo Load Input Current(220Vac)≤ 80mAVolt Meter Accuracy≤ 0.3% + 1 digitsCurrent Meter Accuracy≤ 0.3% + 2 digitConstant Voltage Load Regulation (0-100%)≤ 30mVLine Regulation(198-264Vac)≤ 10mVRipple & Noise (Peak-Peak)≤ 30mVRipple & Noise (r.m.s)≤ 3mVSet Accuracy≤ 0.3% + 10mVTransient Response Time (50%-100% rated Load)≤ 1.0msConstant Current Load Regulation(90%-10% Rated Voltage)≤ 50mALine Regulation (198-264Vac)≤ 20mARipple & Noise (Peak-Peak)≤ 30mAp-pSet Accuracy≤ 0.3% + 20mASize(width× height× depth)120×55×168mmNet Weight1.25KG Package includes: 1 x CPS-6005 DC Power Supply1 x Power cable1 x User Manual Details pictures:
High power density, smallest and compact
Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
The current meter displays mA automatically when current below 1A
High efficiency, up to 88%.
Low Ripple & Noise: =< 30 mVp-p.
Output ON/OFF
LOCK switch
110V/220V voltage input selectable
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection
Specification: ModelCPS-6005Operation Voltage Range95-132Vac OR
198 – 264VacOperation Frequency Range45 – 65HZOutput Voltage Range0 – 60VOutput Current Range0 – 5AEfficiency (220Vac/full load)≥ 87%Full Load Input Current(220Vac)≤1.4ANo Load Input Current(220Vac)≤ 80mAVolt Meter Accuracy≤ 0.3% + 1 digitsCurrent Meter Accuracy≤ 0.3% + 2 digitConstant Voltage Load Regulation (0-100%)≤ 30mVLine Regulation(198-264Vac)≤ 10mVRipple & Noise (Peak-Peak)≤ 30mVRipple & Noise (r.m.s)≤ 3mVSet Accuracy≤ 0.3% + 10mVTransient Response Time (50%-100% rated Load)≤ 1.0msConstant Current Load Regulation(90%-10% Rated Voltage)≤ 50mALine Regulation (198-264Vac)≤ 20mARipple & Noise (Peak-Peak)≤ 30mAp-pSet Accuracy≤ 0.3% + 20mASize(width× height× depth)120×55×168mmNet Weight1.25KG Package includes: 1 x CPS-6005 DC Power Supply1 x Power cable1 x User Manual Details pictures:
