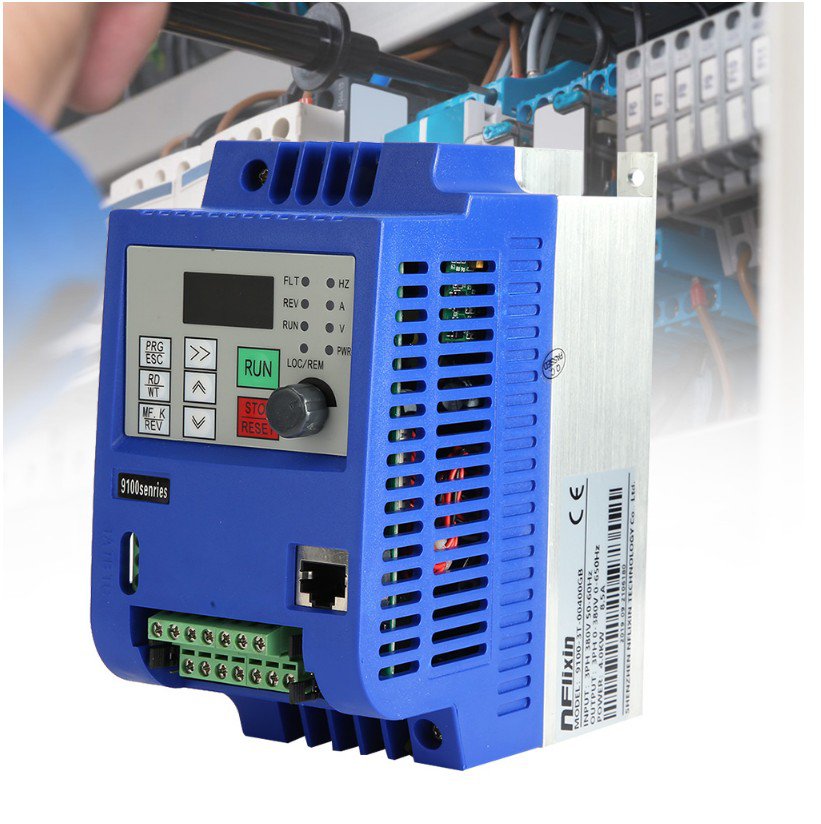

0.75KW-4KW 380V PWM VFD Inverter Simplification Single Phase Inverter Variable Frequency Drive Inver
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specifications:Name:Frequency ConverterColor:BlueMaterials:Engineering plasticSize:82*155*145(mm)Power&Rated Current :0.75KW 2.5A/ 1.5KW 3.7A/ 2.2KW 5A/ 3KW 6A/ 4KW 8.5AVoltage:AC380V 50HZ/60HZOutput Frequency:0-650HZOutput Voltage Regulation Mode:PWM control
Features:-Control mode: V / F control and vector control.-Built-in PID control function, can easily constitute a simple automated control system.-Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on.This inverter is simple type. And heavy duty motor is not recommended, hydraulic oil pump for example
-Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on.
-Internal simple PLC, 6 multi-function input terminals, to achieve operation, 0 speed, calculator, external exception program instructions and alarm.
-Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.
Description:
This inverter can replace the following motor related equipment:
1.Motor soft start erReduce the starting current, realize the soft start function of the motor, completely replace the soft star ter; 2.Reducer deceleration systemThe three-phase asynchronous motor replaces the bulky and energy-consuming deceleration system by frequency conversion speed regulation; 3.High speed motor controllerHigh-speed motor can be driven to achieve high-speed operation; 4.Speed motor speedIt can realize the speed regulation of ordinary three-phase asynchronous motor, wide speed regulation ran ge, stable and safe; 6.Star triangle start er Realize the step-down start of high power motor; 7.Motor reverse switchRealize the motor forward and reverse function; 8.Motor regulatorAchieve constant output to the motor voltage; 9.Motor protectorIn the event of overload, overcurrent, phase loss, stall, short circuit, over voltage, under voltage, leakage, three-phase unbalance, overheating, bearing wear, and eccentricity of the rotor, the motor will be alarmed or protected.
Package Included:1 x Frequency Converter1 x Manual
More details:
Features:-Control mode: V / F control and vector control.-Built-in PID control function, can easily constitute a simple automated control system.-Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on.This inverter is simple type. And heavy duty motor is not recommended, hydraulic oil pump for example
-Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on.
-Internal simple PLC, 6 multi-function input terminals, to achieve operation, 0 speed, calculator, external exception program instructions and alarm.
-Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.
Description:
This inverter can replace the following motor related equipment:
1.Motor soft start erReduce the starting current, realize the soft start function of the motor, completely replace the soft star ter; 2.Reducer deceleration systemThe three-phase asynchronous motor replaces the bulky and energy-consuming deceleration system by frequency conversion speed regulation; 3.High speed motor controllerHigh-speed motor can be driven to achieve high-speed operation; 4.Speed motor speedIt can realize the speed regulation of ordinary three-phase asynchronous motor, wide speed regulation ran ge, stable and safe; 6.Star triangle start er Realize the step-down start of high power motor; 7.Motor reverse switchRealize the motor forward and reverse function; 8.Motor regulatorAchieve constant output to the motor voltage; 9.Motor protectorIn the event of overload, overcurrent, phase loss, stall, short circuit, over voltage, under voltage, leakage, three-phase unbalance, overheating, bearing wear, and eccentricity of the rotor, the motor will be alarmed or protected.
Package Included:1 x Frequency Converter1 x Manual
