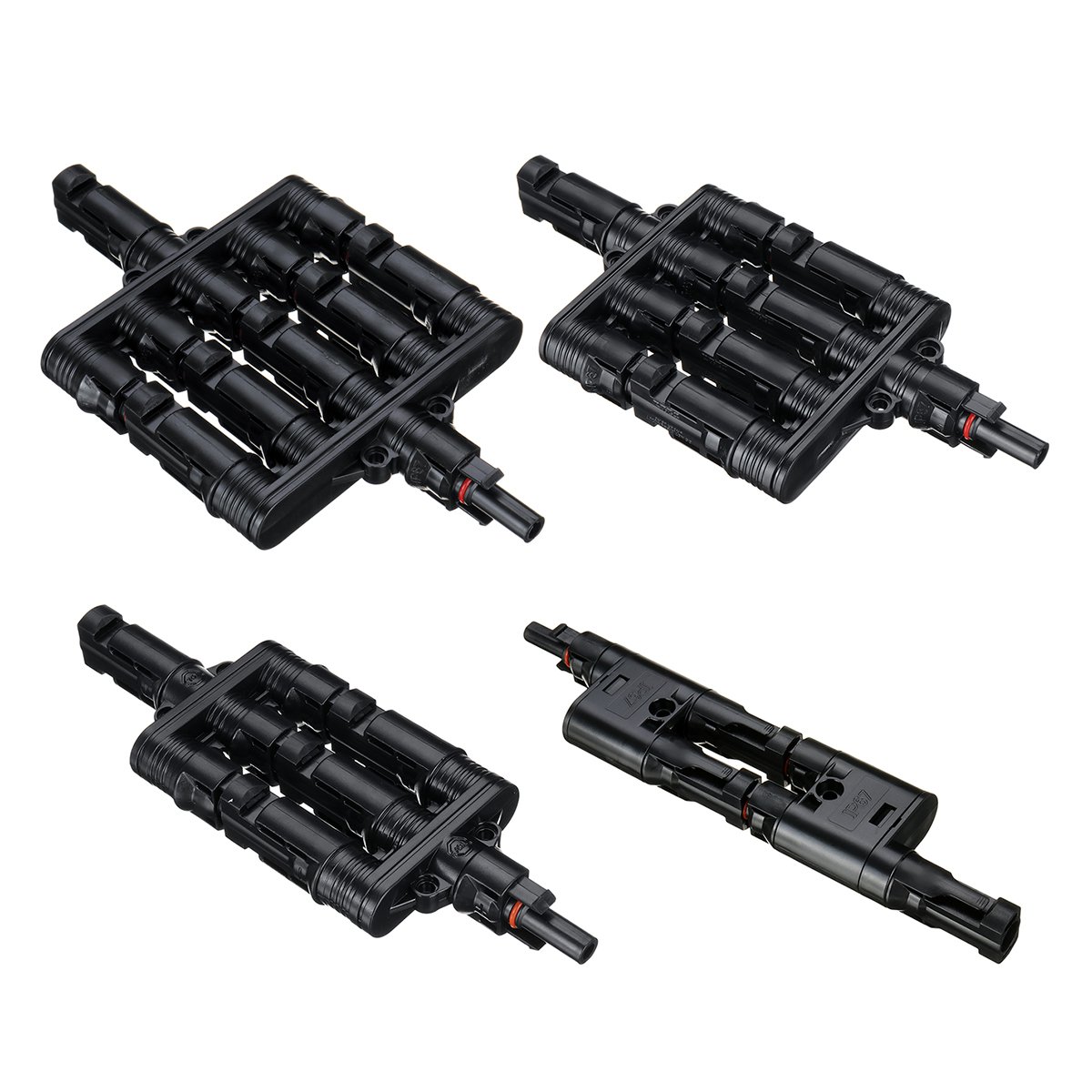

MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65

Specification:
 2 branch : T Type MC4 Male/Female Solar Panel Cable Connectors:one female to double male (F/M/M)and one male to double female (M/F/F)                                                                                                                     Insulation Material: PPOSize: 19.6*4cmColor: BlackContact Material: Copper,Silver PlatedRated Current: 50ARetaed Voltage: 1000 VDCTest Voltage: 6000 VDC (50Hz,min)Protection Class: IIContact Resistance: 0.5 mΩTemperature Range: -40в„ѓ to +90в„ѓProtection Degree: IP67/IP2Flame Class: UL94-VOInsertion force: ≤ 50NWithdrawal force:≥ 50N 3 branch : MC4 T Type 3 branch Solar Panel Cable Photovoltaic Connectors MFFF FMMM IP65Size: 17*5.1cmColor : BlackMaxi operating current : 30ATemperature : -40 ~ 90Safety class :CIass IIWaterproof rating : IP65Maximum voltage : DC1000V 4 branch : AC/DC Solar Branch Connectors MFFFF FMMMM IP65Color : BlackMaxi operating current : 50ATemperature : -40 ~ 90Safety class :CIass IIWaterproof rating : IP65Maximum voltage : DC1000V 5 branch : Terminal dimensions:Φ4.0mmAdapter cable:2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWGRated voltage:TUV 1000V DC / UL 600V DCSize: 17.2*7.2cmColor : BlackMaxi operating current : 20A~30ATemperature : -40в„ѓ~ +85в„ѓSafety class :CIass IIWaterproof rating : IP67(IEC 60529); Maximum voltage : DC1000VTest voltage:DC 8KV 1minInsulation Materials:PPOFlammability rating:UL94V - 0MC4 T-Branch Connector - 1 male to 5 femaleMC4 T-Branch Connector - 1 female to 5 maleContact resistance : ≤ 5mΩTerminal material ; copper,plate,tin Package:1* MC4 T Branch
