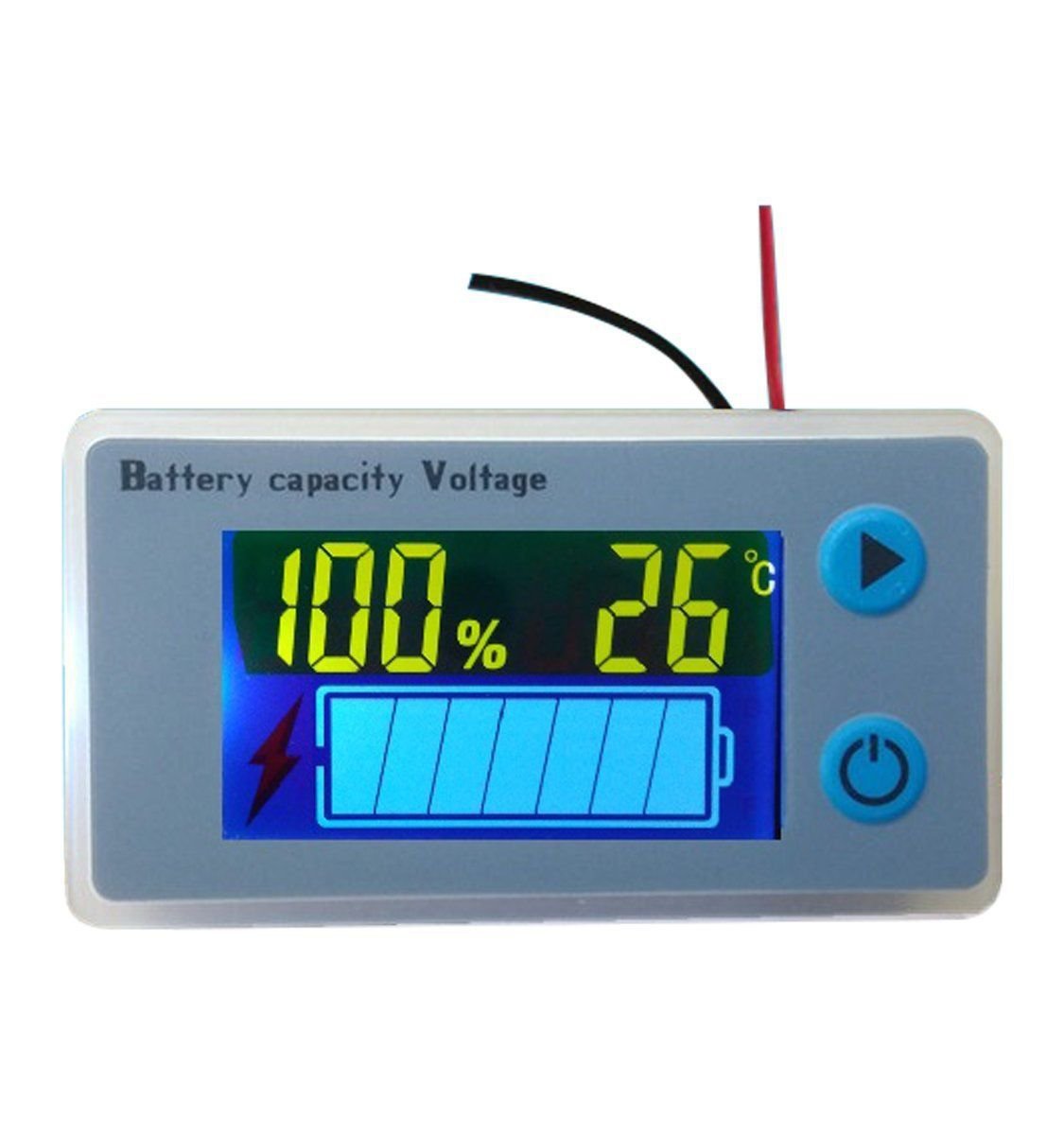

Specification:Material: Plastic ShellColor: Grey+BlueSize: As picture shown Featuresв—Џ The open programming modeв—Џ The buzzer alarm(Selective assembly).в—Џ The low power red mark flashes to remind.в—Џ The product can go to sleep after 10 seconds.в—Џ The 10~100V wide input voltage,reverse protection.в—ЏThe installation is simple, with a buckle, without screws.в—Џ Detection of the battery temperature (Selective assembly).в—ЏThe color liquid crystal material, light clear display, display the soft night.в—Џ To display the percentage of remaining battery power,voltage, temperature value.в—ЏSuitable for lead-acid, lithium-ion batteries, lithium iron phosphate, metal hydride battery. INSTRUCTIONS:1.  PH2.0 terminal products supporting the use of wire, connected to the circuit board face should plug back.2.  External NTC temperature sensor, please put the sensor to measure the temperature of the parts, do notsqueeze the sensor( selective assembly).3.  Red line to the positive terminal, black line to the negative terminal.4.  After the instrument is powered on , which shows the percentage of the battery power, the voltage value,and the symbols of the analog battery.5.  Press the button to turn off the instrument. In close mode, you can wake up the instrument by pressingany button.6.  Click the button , you can switch the voltage value and temperature value display.7.  The battery symbols on the display interface, from the right to the left, are 7 display boxes representing thepool power from low to high.8.  The voltage on the display interface is measured in real time, and the voltage value is displayed on10-100V.9.  The percentage on the display interface is the percentage of the remaining battery power10. When the battery is connected to the charger or the discharge of the high current load, the displayparameters will fluctuate11. The red lightning flashes the alarm when the battery is low12. Low voltage buzzer alarm(Selective assembly)13. If the battery specification is special, you can enter the set mode 3-- and reset the upper and lower limits ofthe measured battery voltage. Package included:
1x Battery Monitor
1x Cable Notice:Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.Please understand that colors may exist chromatic aberration as the different placement of pictures.
