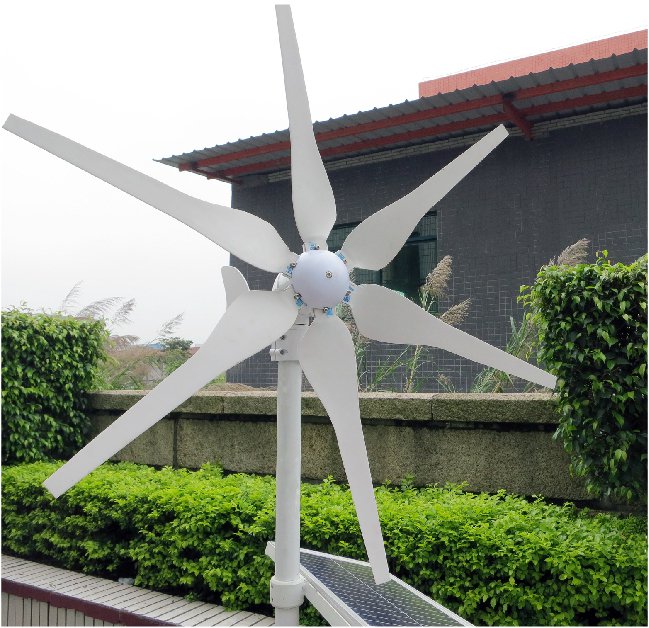

High Efficiency 300W Wind Turbine Generator AC/DC 12V/24V 6 Blades
More than 10 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description : High Efficiency 300W AC/DC12V/24V 6 Blades Wind Turbine Generator
Wind is in nature inexhaustible energy, but also is one of the energy not pollute the environment.
Changing the wind energy to power energy is used in industry production and normal life, which is human ideal of the energy acquisition modes.This wind turbine generator includes a high efficiency motor to get the most from the turbine. This turbine comes with one of the best warranties in the industry.
This wind generator turbine is small yet versatile turbine and can produce up to 300 Watts Max.
It features a special coating that protects the generator, making it suitable for locations.
The turbine begins to supply power in wind speeds as low as 2m/s.
Features :
1. High efficiency, low volume and low weight.
2. Carbon fiber baldes, high efficiency of anti-wind ability.
3. Blades with the ability of automatically stall protection under strong wind.
4. Can connect with solar panel togther.
5. Can produce two types : DC and AC
Details specification :
ModelP-300WNameHyacinth : )Rated power300WRated DC voltageAC/DC 12V/24V for optionRated current25A/12. 5ARated speed900r/mMax power350WNumber of blade6 pcsStarting wind speed2m/sCut-in wind speed3m/sCut-out wind speed15m/sSecurity wind speed40m/sRated wind speed12. 5m/sEngine (generator)Three-phase permanent magnel generatorRotor diameter1140mmBlade materialCarbon fiber reinforced plastics, about 500mm lengthOutput line anti-winding deviceOverall three-phase commutatorOver-speed wind protectionTip stall protection + turned protection + Electromagnetic brakeLife span15 yearsEquipment surface protectionAluminum oxide + plastic coatingWorking temperature-45°C - 70°CN. W.5. 125kgPacking materialCarton box and foam materialpacking dimension650 x 400 x 320mmG. W.About 6. 5kg
Recommend collocation : solar photovoltaic panels, controller, storage battery, tower support. (Both not included in the package)
DC model is needn't controller, AC MODEL is need the controller. please make sure what you want. thanks very much~
Controller features (Find it SKU182329) :It can change the wind turbine's current from three-phase AC to Two-phase DC.
Function :
1. Over load protection
2. Over-speed Bracking.
Connection mode :
1, Red and black lines connect with battery Positive and negative.
2, Three green lines connect with wind generator freely, no color request.
Indicating state :
1, When controller Green indicator of battery light is bright, it means the battery is connected successfully.
2, When controller Green indicator wind of generator is bright, it means wind generator is connected successfully, the speed of the flashing means the speed of the Wind generator rotation.
3, When controller Red indicator is bright, it means the battery is fully charged. the wind generator will breake automatically.
Power curve :
Turbine and size (mm)
Real Test and Working : ) ↓↓↓
Package includes :
1 x 300W Wind Turbine Generator Set with 6 Blades
Can find the blade in SKU182336
Whole set and Full accessories
Comes in large and safe cover packaging. Details pictures :
Wind is in nature inexhaustible energy, but also is one of the energy not pollute the environment.
Changing the wind energy to power energy is used in industry production and normal life, which is human ideal of the energy acquisition modes.This wind turbine generator includes a high efficiency motor to get the most from the turbine. This turbine comes with one of the best warranties in the industry.
This wind generator turbine is small yet versatile turbine and can produce up to 300 Watts Max.
It features a special coating that protects the generator, making it suitable for locations.
The turbine begins to supply power in wind speeds as low as 2m/s.
Features :
1. High efficiency, low volume and low weight.
2. Carbon fiber baldes, high efficiency of anti-wind ability.
3. Blades with the ability of automatically stall protection under strong wind.
4. Can connect with solar panel togther.
5. Can produce two types : DC and AC
Details specification :
ModelP-300WNameHyacinth : )Rated power300WRated DC voltageAC/DC 12V/24V for optionRated current25A/12. 5ARated speed900r/mMax power350WNumber of blade6 pcsStarting wind speed2m/sCut-in wind speed3m/sCut-out wind speed15m/sSecurity wind speed40m/sRated wind speed12. 5m/sEngine (generator)Three-phase permanent magnel generatorRotor diameter1140mmBlade materialCarbon fiber reinforced plastics, about 500mm lengthOutput line anti-winding deviceOverall three-phase commutatorOver-speed wind protectionTip stall protection + turned protection + Electromagnetic brakeLife span15 yearsEquipment surface protectionAluminum oxide + plastic coatingWorking temperature-45°C - 70°CN. W.5. 125kgPacking materialCarton box and foam materialpacking dimension650 x 400 x 320mmG. W.About 6. 5kg
Recommend collocation : solar photovoltaic panels, controller, storage battery, tower support. (Both not included in the package)
DC model is needn't controller, AC MODEL is need the controller. please make sure what you want. thanks very much~
Controller features (Find it SKU182329) :It can change the wind turbine's current from three-phase AC to Two-phase DC.
Function :
1. Over load protection
2. Over-speed Bracking.
Connection mode :
1, Red and black lines connect with battery Positive and negative.
2, Three green lines connect with wind generator freely, no color request.
Indicating state :
1, When controller Green indicator of battery light is bright, it means the battery is connected successfully.
2, When controller Green indicator wind of generator is bright, it means wind generator is connected successfully, the speed of the flashing means the speed of the Wind generator rotation.
3, When controller Red indicator is bright, it means the battery is fully charged. the wind generator will breake automatically.
Power curve :
Turbine and size (mm)
Real Test and Working : ) ↓↓↓
Package includes :
1 x 300W Wind Turbine Generator Set with 6 Blades
Can find the blade in SKU182336
Whole set and Full accessories
Comes in large and safe cover packaging. Details pictures :
