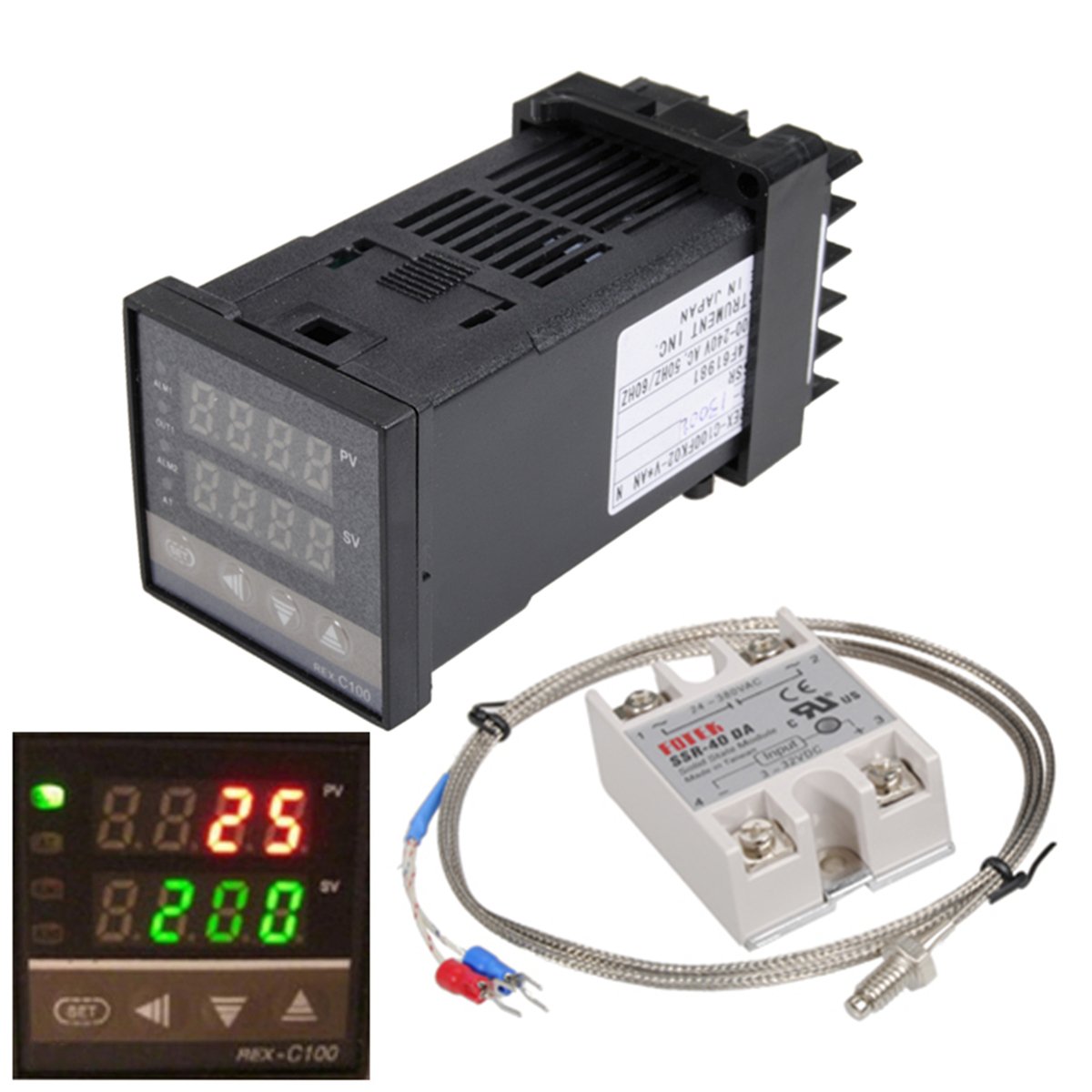

110-240V 0~1300 REX-C100 Digital PID Temperature Controller Kit Alarm Function With Probe Relay

Package Included :1 x REX-C100 PID Temperature Controller1 x K Type Probe Sensor1 x Max.40A SSR REX-C100 110-240V 0-1300 Degree Digital PID Temperature Controller Kit Features :1.REX-C100 Temperature Controller2.Measuring accuracy : ±0.5%FS3.Cold-end compensation tolerance : ±2в„ѓ can be modified by software in 0~50в„ѓ4.Resolution : 14 bit5.Sampling cycle : 0.5 Sec6.Power : AC 110-240V 50/60HZ7.Process value (PV), Setting value (SV)8.Output, alarm and self-tuning can be indicated by : LED9.PIN control (including ON/OFF, step-type PID and continuous PID)10.Self-tuning control11.Relay output : contact capacity 250V AC 3A (resistive load)12.Alarm function output : 2 way13.Proportional band (P) : 0~full range (ON/OFF control when set to 0)14.Detective temperature range : 0 to 1300в„ѓ15.Insulation resistance : >50M ohm(500V DC)16.Insulation resistance : 1500V AC/min17.Insulation resistance : Power Consumption < 10 VA18.Service environment : 0~50в„ѓ19.Environment with no corrosive gas 30~85% RH K Thermocouple Probe Cable1.Length : 1M2.Sensor diameter : 4.5mm3.Temperature rang : 0 to 400в„ѓ(U can install to 1300 в„ѓ K Thermocouple Probe(not included) )4.Internal Insulation : Fiberglass5.External Shielding : Insulated Shielding Max.40A SSR1.Output Voltage Range : Standard Type2.Output Current : 40A3.Input Voltage : DC 3-32V4.Output Voltage : 24-380V AC
