$32.16
Add to Cart

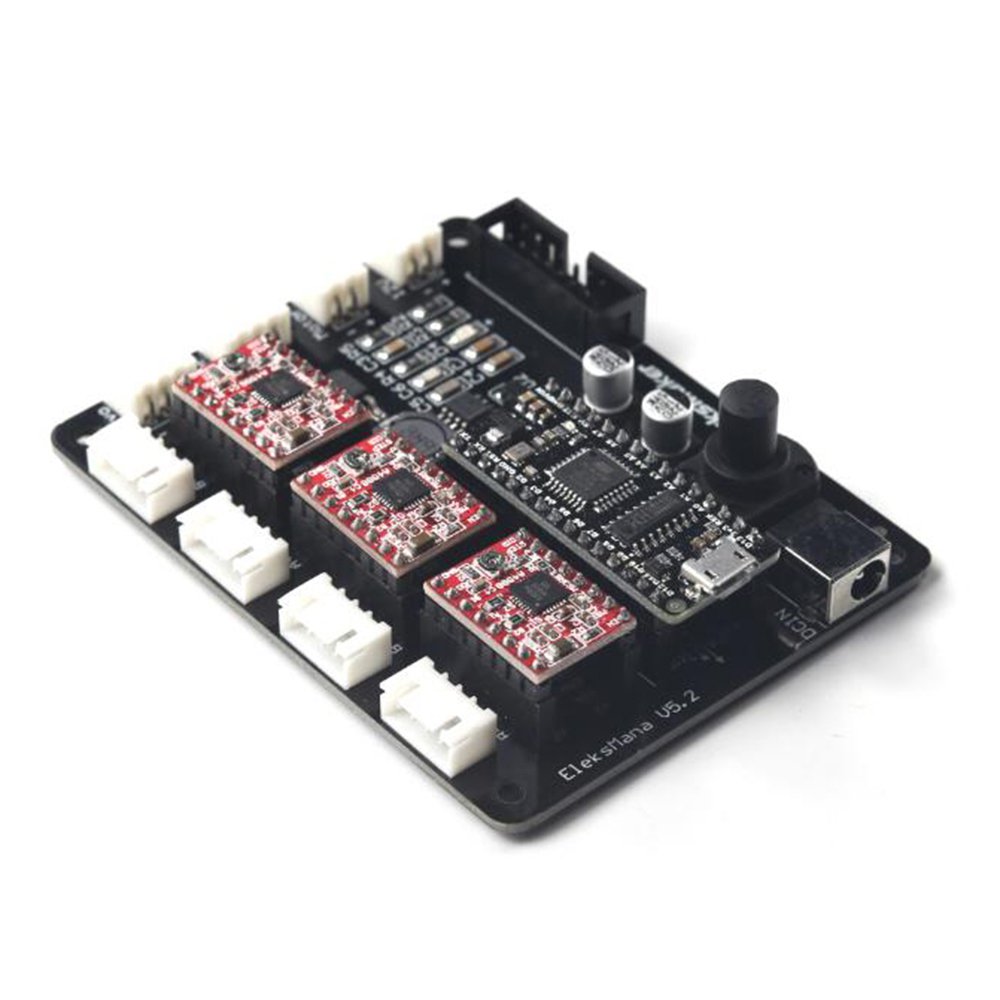

EleksMaker Mana 3 Axis Stepper Motor Driver Board Controller For DIY Laser Engraver
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
EleksMaker® Mana 3 Axis Control Board is not only for EleksMaker EleksMill Machine, but also suitable for most mini 3 axis cnc engraving machines of the market (such as 3018 / 2417 CNC Router).
Specification:General Specification Brand EleksMaker® Model Mana Product Name 3 Axis Control Board Product Size 90mm*50mm*20mm Board Dimension (L*W) 80mm*77mm Technical Parameters Interface Port Micro USB Supply Voltage DC12V-5A Operating System Windows 7/8/10 Software Support EleksCAM (Recommended) / Candle / T2-Laser... Support Axis 3 Axis Support Stepper Motor Motor within 2A 2-phase 4-wire Power Interface DC5.5 - 2.1 (Inside is positive electrodes and ouside is negative electrodes)
Features:1. Expansion of functions: stop, pause, resume, fans, low light, external relay.2. Fit for DIY desktop laser engraver,dispensing machines printer,plotter,tool CNC.3. Three axis linkage, Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire.4. Micro USB interfaces, 12V power supply, delivery lines! Send software! Technical support!5. Large MOS tube, onboard DC buck module, wire jump ADJ can adjust manually the laser voltage to control the laser power. Tips:- Official EleksCAM Software Download Link: CLICK HERE;
- Interface Description: CLICK HERE Note:1. There isn't Voltage Regulator Module in this Laser board.
2. Please use EleksCAM software if you want to use this control board on 3018 router or other 3 axis cnc engraving machine.3. The motor can
Specification:General Specification Brand EleksMaker® Model Mana Product Name 3 Axis Control Board Product Size 90mm*50mm*20mm Board Dimension (L*W) 80mm*77mm Technical Parameters Interface Port Micro USB Supply Voltage DC12V-5A Operating System Windows 7/8/10 Software Support EleksCAM (Recommended) / Candle / T2-Laser... Support Axis 3 Axis Support Stepper Motor Motor within 2A 2-phase 4-wire Power Interface DC5.5 - 2.1 (Inside is positive electrodes and ouside is negative electrodes)
Features:1. Expansion of functions: stop, pause, resume, fans, low light, external relay.2. Fit for DIY desktop laser engraver,dispensing machines printer,plotter,tool CNC.3. Three axis linkage, Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire.4. Micro USB interfaces, 12V power supply, delivery lines! Send software! Technical support!5. Large MOS tube, onboard DC buck module, wire jump ADJ can adjust manually the laser voltage to control the laser power. Tips:- Official EleksCAM Software Download Link: CLICK HERE;
- Interface Description: CLICK HERE Note:1. There isn't Voltage Regulator Module in this Laser board.
2. Please use EleksCAM software if you want to use this control board on 3018 router or other 3 axis cnc engraving machine.3. The motor can
