$147.68
Add to Cart

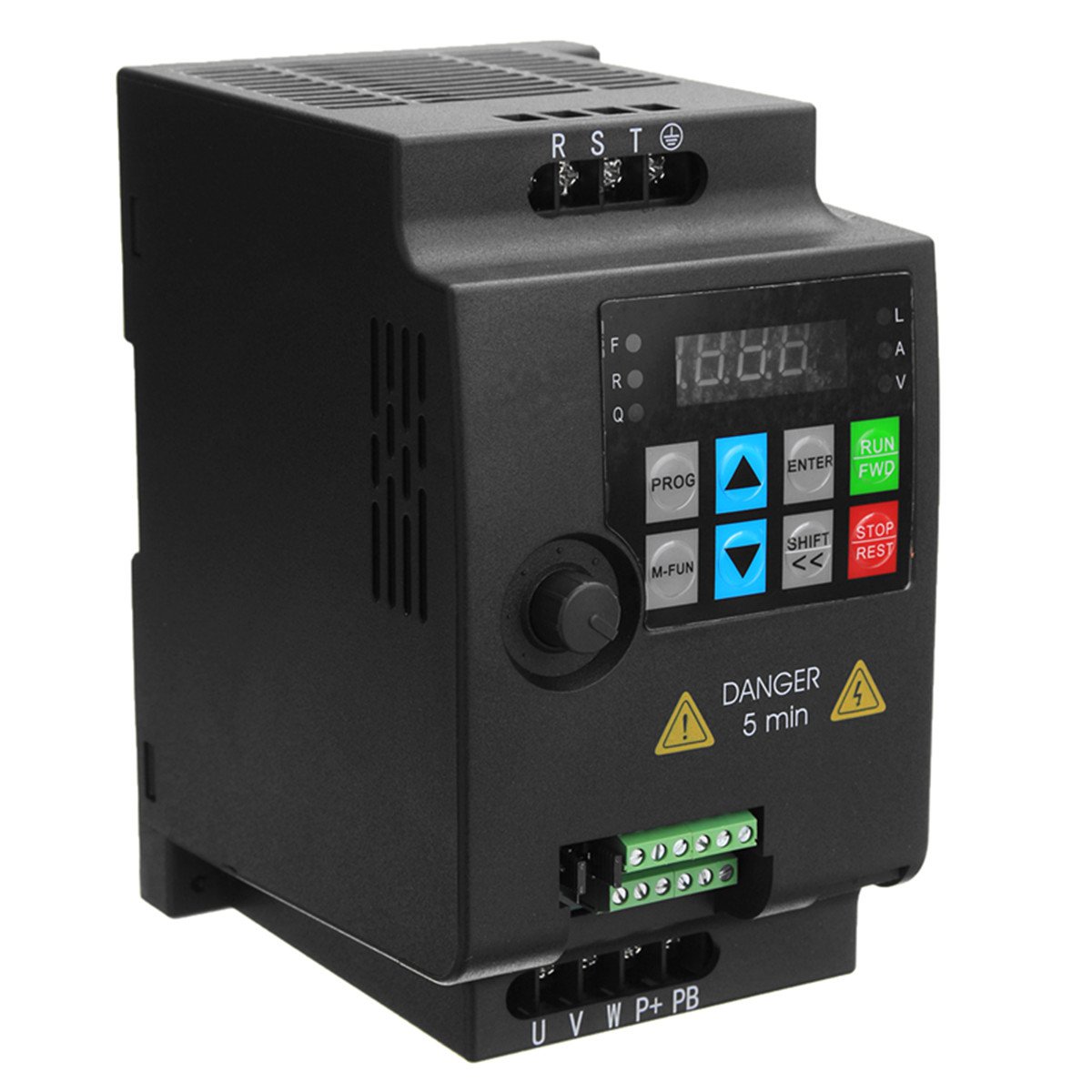

SAKO 380V 1.5KW 3PH Variable Frequency Inverter Drive Speed Controller Filter Inverter
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specification:
Name:Frequency Inverter
Power:4.5KWInput:AC 3PH 380V±15% 5A 47Hz-63HzOutput:AC 3PH 0V-380V 3.7A 0Hz-400HzTemperature: -40°C~+70°CControl method: Simple V/F controlModulation: Space Voltage Vector PWM ModulationSpeed range: 1:10V/F curve: square curve, linear curveCooling method: air-cooled, with fan controlColor:BlackSize:140mm*110mm*85mm
Features:
-The control panel is simple and easy to understand.-Quick heat dissipation and longer service life.-Through the built-in PLC or control terminals to achieve multi-speed operation, operation panel, controlterminals can be switched through a variety of ways.-LED display set frequency, output frequency, output voltage and output current and other parameters.-With over-current protection, over-voltage protection, under-voltage protection, overheat protection and overload protection.
Package Included:
1 x Frequency Inverter
More Details:
Name:Frequency Inverter
Power:4.5KWInput:AC 3PH 380V±15% 5A 47Hz-63HzOutput:AC 3PH 0V-380V 3.7A 0Hz-400HzTemperature: -40°C~+70°CControl method: Simple V/F controlModulation: Space Voltage Vector PWM ModulationSpeed range: 1:10V/F curve: square curve, linear curveCooling method: air-cooled, with fan controlColor:BlackSize:140mm*110mm*85mm
Features:
-The control panel is simple and easy to understand.-Quick heat dissipation and longer service life.-Through the built-in PLC or control terminals to achieve multi-speed operation, operation panel, controlterminals can be switched through a variety of ways.-LED display set frequency, output frequency, output voltage and output current and other parameters.-With over-current protection, over-voltage protection, under-voltage protection, overheat protection and overload protection.
Package Included:
1 x Frequency Inverter
