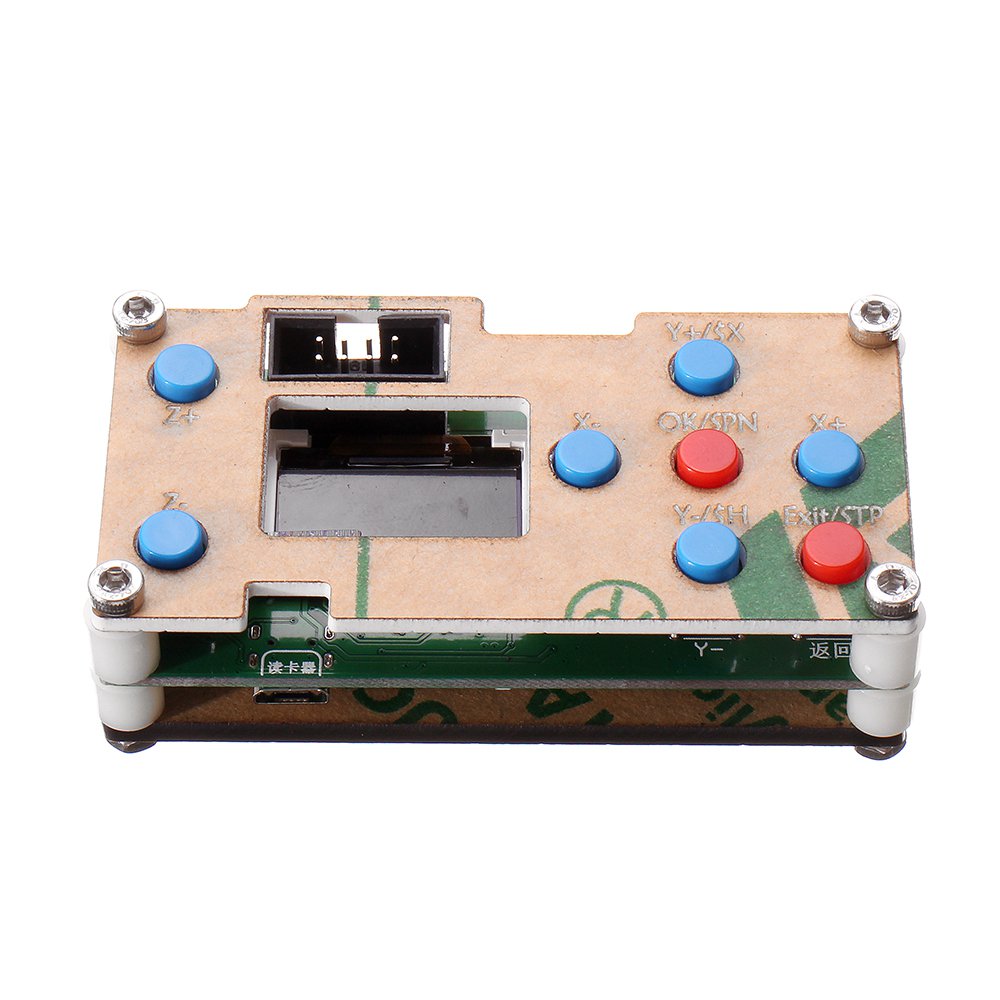

Description:This offline controller is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.В Specification:Firmware: GRBL 08, 09, 1.1В and so onВ Input Voltage: DC 7V- 36VApplicable CNC Router: 3 Axis CNC router 1610; 2418; 3018В Features:1. Support GRBL and benbox firmware.В Support CNC 3-axis laser engraving machine.2. The stroke length isn't limited to 30x18 and 24x18,В it can be setting other length.В Please set the stroke in the command.For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.В Instructions:GRBL Off-line ControllerPress Z+ and Z- , the Z axis will move up and down.Press X+ and X- , the X axis will move left and right.Press Y+ and Y- , the Y axis will move Front and Back.Press SPIN : Spindle on (Laser on ), Spindle off (laser off)Press SMOD: returnPress Z+ for 5 seconds , change the Language to English.SD Card:В Included , you need a SD card reader to write into the root directory G-code files .Notice:The Laser Interface is 3 pin on this control board.В Only support 42 stepper motor.В Package Included:1 x LCD Screen GRBL Controller1 x Cable for Spindle Connection1 x SD CardВ More Details:
