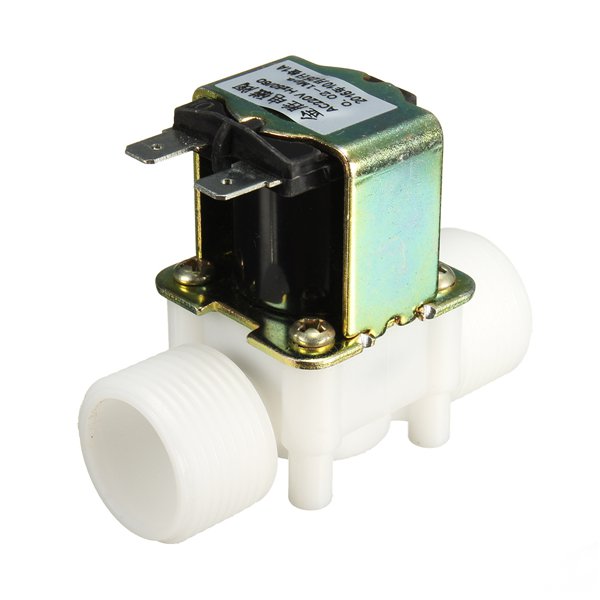

3/4inch AC 220V Solenoid Valve Electric Water Valve N/C Control Equipment
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description
Name:3/4'' AC 220V Solenoid Valve
Material: PP plastic
Voltage: AC 220V
Current: 20MA
Rated power: 5W
Operation model: normally closed (N/C)
Pressure: about 0.02 - 0.8Mpa
Port size: about G3/4''
Fluid temperature: about 0-90в„ѓ
Size: Total length: 72mm
Total width: 36mm
Total height: 57mm
Thread: G3 / 4 "male thread
Thread length: 17mm
Fixed pitch: 25 * 25mm
Features:
Usage: water and low viscosity fluids
Flow characterastics:
about 0.02Mpa>2L/min;
about 0.10Mpa>10L/min;
about 0.30Mpa>16L/min;
about 0.80Mpa>28L/min.
(Now the product has improved pressure upper limit, extreme pressure 1Mpa)
Interface: 3/4 "male, The power supply terminal is the "Inserts" style.
The type of plastic solenoid valve made of food grade PP, the coil is coil packaging materials package,
with a moisture-proof, wear-resistant anti-corrosion, high temperature resistance advantages, high insulation level, good heat dissipation.
This valve is normally closed solenoid valve, that is connected to power (throught water), power off (cut water)
Package Included:
1xSolenoid Valve
Name:3/4'' AC 220V Solenoid Valve
Material: PP plastic
Voltage: AC 220V
Current: 20MA
Rated power: 5W
Operation model: normally closed (N/C)
Pressure: about 0.02 - 0.8Mpa
Port size: about G3/4''
Fluid temperature: about 0-90в„ѓ
Size: Total length: 72mm
Total width: 36mm
Total height: 57mm
Thread: G3 / 4 "male thread
Thread length: 17mm
Fixed pitch: 25 * 25mm
Features:
Usage: water and low viscosity fluids
Flow characterastics:
about 0.02Mpa>2L/min;
about 0.10Mpa>10L/min;
about 0.30Mpa>16L/min;
about 0.80Mpa>28L/min.
(Now the product has improved pressure upper limit, extreme pressure 1Mpa)
Interface: 3/4 "male, The power supply terminal is the "Inserts" style.
The type of plastic solenoid valve made of food grade PP, the coil is coil packaging materials package,
with a moisture-proof, wear-resistant anti-corrosion, high temperature resistance advantages, high insulation level, good heat dissipation.
This valve is normally closed solenoid valve, that is connected to power (throught water), power off (cut water)
Package Included:
1xSolenoid Valve
