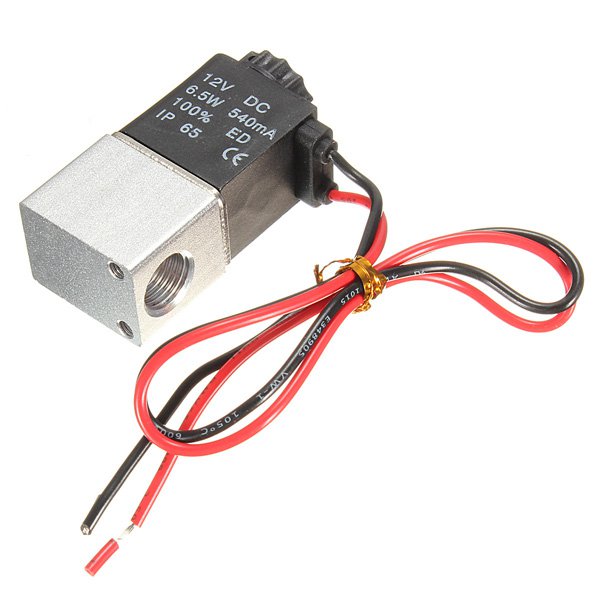

1/4inch DC 12V 2 Way Normally Closed Electric Solenoid Air Valve
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description :
1/4inch DC 12V 2 Way Normally Closed Pneumatic Aluminum Electric Solenoid Air Valve
WIC Valve 2ACK series 2-way normally closed solenoid valve is to control On/Off of air and inert gas.
This solenoid valve has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port.
Valve stays close when the coil is de-energized, and it opens when energized.
Has two holes in the bottom and can be mounted in any position.
Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized.
2ACK Series valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum). WIC Valve is compatible with SMC valves.
Specification :
Model Number : 2ACK-1/4-12VDC-G
Valve Type : 2 Way Normally Closed (Valve opens with energized)
Service Media : Air, Gas, Liquid, Water
Operation Model : Direct Acting
Flow Model : Uni-Directional
Flow Rate : 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)
Response Time : Less than 20 ms
Body Material : Anodized Aluminum
Seal Material : NBR (Buna N)
Armature Tube Material : Brass
Plunger & Spring Material : Stainless Steel
Coil Certification : CE Certification
Coil Power : 6.5W
Coil Class : F Class IP 65 (CE Certification)
Coil Duty : 100% ED (Continuous Duty)
Operating Pressure : Vacuum to 115 PSI
Operating Temperature : -5 to 80 °C
Port Size : 1/4" Inch NPT Female Port
Coil Voltage : 12V DC
Voltage Tolerances : DC : +10% –5% ; AC : +10% -15%
Electrical Connection : Grommet Coil with 12" Lead Wire
2ACK Series Electric Solenoid Valve Dimensions :
Package included :
1 x 1/4inch DC 12V Electric Solenoid Air Valve
Details pictures :
1/4inch DC 12V 2 Way Normally Closed Pneumatic Aluminum Electric Solenoid Air Valve
WIC Valve 2ACK series 2-way normally closed solenoid valve is to control On/Off of air and inert gas.
This solenoid valve has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port.
Valve stays close when the coil is de-energized, and it opens when energized.
Has two holes in the bottom and can be mounted in any position.
Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized.
2ACK Series valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum). WIC Valve is compatible with SMC valves.
Specification :
Model Number : 2ACK-1/4-12VDC-G
Valve Type : 2 Way Normally Closed (Valve opens with energized)
Service Media : Air, Gas, Liquid, Water
Operation Model : Direct Acting
Flow Model : Uni-Directional
Flow Rate : 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)
Response Time : Less than 20 ms
Body Material : Anodized Aluminum
Seal Material : NBR (Buna N)
Armature Tube Material : Brass
Plunger & Spring Material : Stainless Steel
Coil Certification : CE Certification
Coil Power : 6.5W
Coil Class : F Class IP 65 (CE Certification)
Coil Duty : 100% ED (Continuous Duty)
Operating Pressure : Vacuum to 115 PSI
Operating Temperature : -5 to 80 °C
Port Size : 1/4" Inch NPT Female Port
Coil Voltage : 12V DC
Voltage Tolerances : DC : +10% –5% ; AC : +10% -15%
Electrical Connection : Grommet Coil with 12" Lead Wire
2ACK Series Electric Solenoid Valve Dimensions :
Package included :
1 x 1/4inch DC 12V Electric Solenoid Air Valve
Details pictures :
