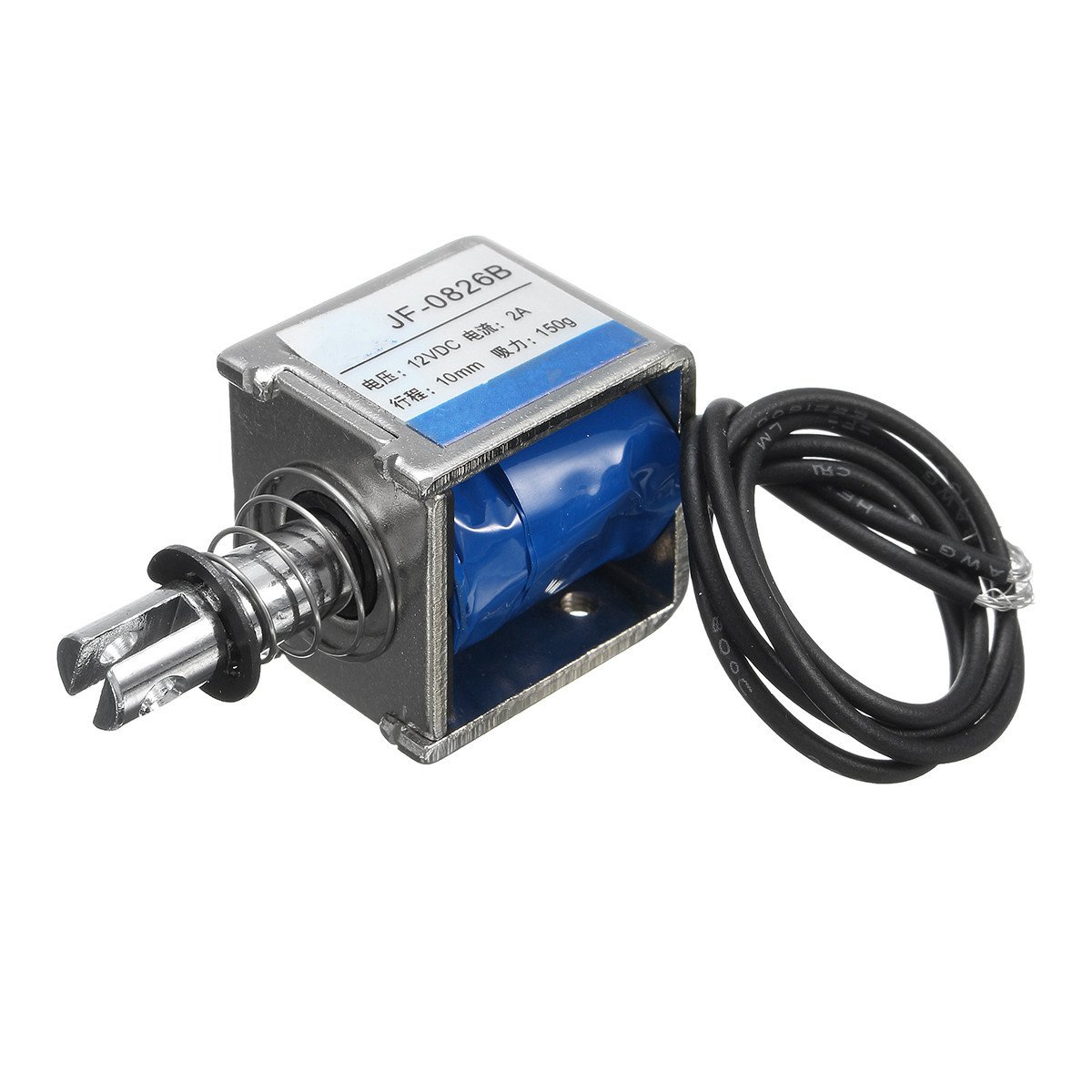

JF-0826B 12V DC 10mm Hard Magnetic 20N Push Pull Electromagnet Frame Solenoid
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
JF-0826B Hard Magnetic 12V DC 10mm 20N Push - Pull Electromagnet Frame Solenoid
Specification:
Material: Hard magnetic material
Current characteristics: DC
Current :2A
Voltage: 12V DC
Initial suction: 20 (N)
Working voltage: 24V
Rated travel: 10 (mm)
Length:60mm
Size:25x25x22mm
Operating conditions:
1. The operating temperature: -5 в„ѓ to 40 в„ѓ between the solenoid valve will not solidify
2. The operating humidity: relative humidity of 45% to 85% between the solenoid valve will not solidify
3. Storage temperature: -40 в„ѓ to 75 в„ѓ between the solenoid valve will not solidify
4. Storage humidity: relative humidity 0% to 95% between the solenoid valve will not solidify
Performance to show:
Temperature rise: 65 or less (grade A) Life: Under load conditions, more than one million cycles can be used.
Test environment:
1. ambient temperature: 23 ± 2 в„ѓ
2. relative humidity: 50 ± 10%
3. atmospheric pressure: 1013MPa
4. Insulation resistance: 500VDC insulation resistance measurement, the coil and the yoke between the need to have at least 100MΩ of the insulation resistance
5. the insulation strength: coil and yoke between the insulation strength should be able to withstand at least 600VAC / 1 minute
Features:
1. Easy to fix and connect the load.
2. Temperature stability, can extend product life and ensure good performance.
3. E retaining ring and rubber gasket to mute the solenoid valve.
4. Low friction ensures high efficiency and extension.
5. Simple and reliable structure design.
Application:
1. Players: eat the tiger, all kinds of money meter.
2. Vending machines: all kinds of vending machines, exchange machines, ticket machines.
3. Office equipment: list machine, computer equipment, fax machines, punch card machines, photocopiers, typewriters, cash registers, drawing machines, open drink machine.
4. Transport equipment: automatic door locks, safety belt locks, automotive solenoid valves, parking equipment.
5. Household appliances: tape recorders, video recorders, electronic piano, automatic knitting machine, accompaniment machine.
6. Other: packaging machines, manipulators, farming equipment, stamping equipment, fire, anti-theft, water-saving solenoid valve.
Package Included:
1 x Electromagnet
