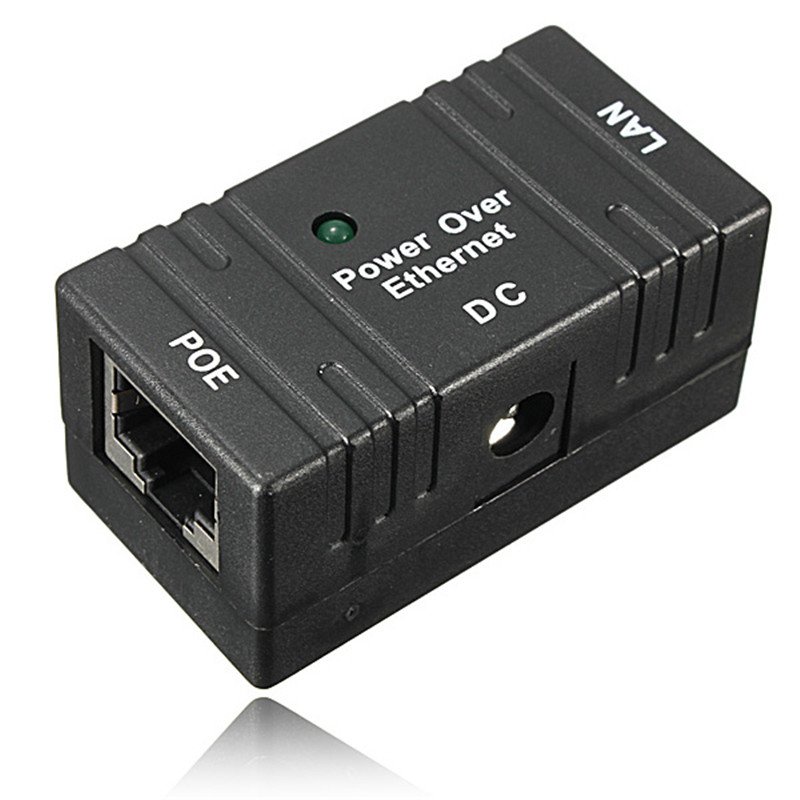

10M/100Mbp Passive POE Power Over Ethernet RJ-45 Injector Splitter Wall Mount Adapter For CCTV IP Ca

Feature:1.To achieve best performance of a Wireless LAN, the location of
Access Point(AP) must be carefully chosen.In most cases, finding
a power supply for AP is a common obstacle.
2.Power over Ethernet(PoE) technology provides the ideal power
solution to help overcome these obstacles.In Ethernet, four pairs
of C5 or C5E twisted pairs are used as the medium for transmission.
The actual data transmission, however,only takes up 4-pairs of wires
(pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and
7-8 to conduct electricity.

Specificiation:
1.Product Name:POE Injector / Splitter
2.Data PIN:1/2,3/6
3.Power PIN:4/5+ & 7/8-
4.Data in:Connects PC/HUB/Switch
5.Dimension:50mm*25mm*25mm
6.Case of material:ABS 94V-0
7.Ethernet Data rate:10/100 Mbp
8.Ethernet Cable:TIA/EIA 568 Cat.5
9.Ethernet Cable Connector:RJ-45
10.Operating Temperature:0 - 40 Degree
11.Storage Temperature:-40 - 70 Degree
12.Operating Humidity :10% to 80% RH
13.Storage Humidity:5% to 90% RH

Package included:
1 X PoE injector Splitter
