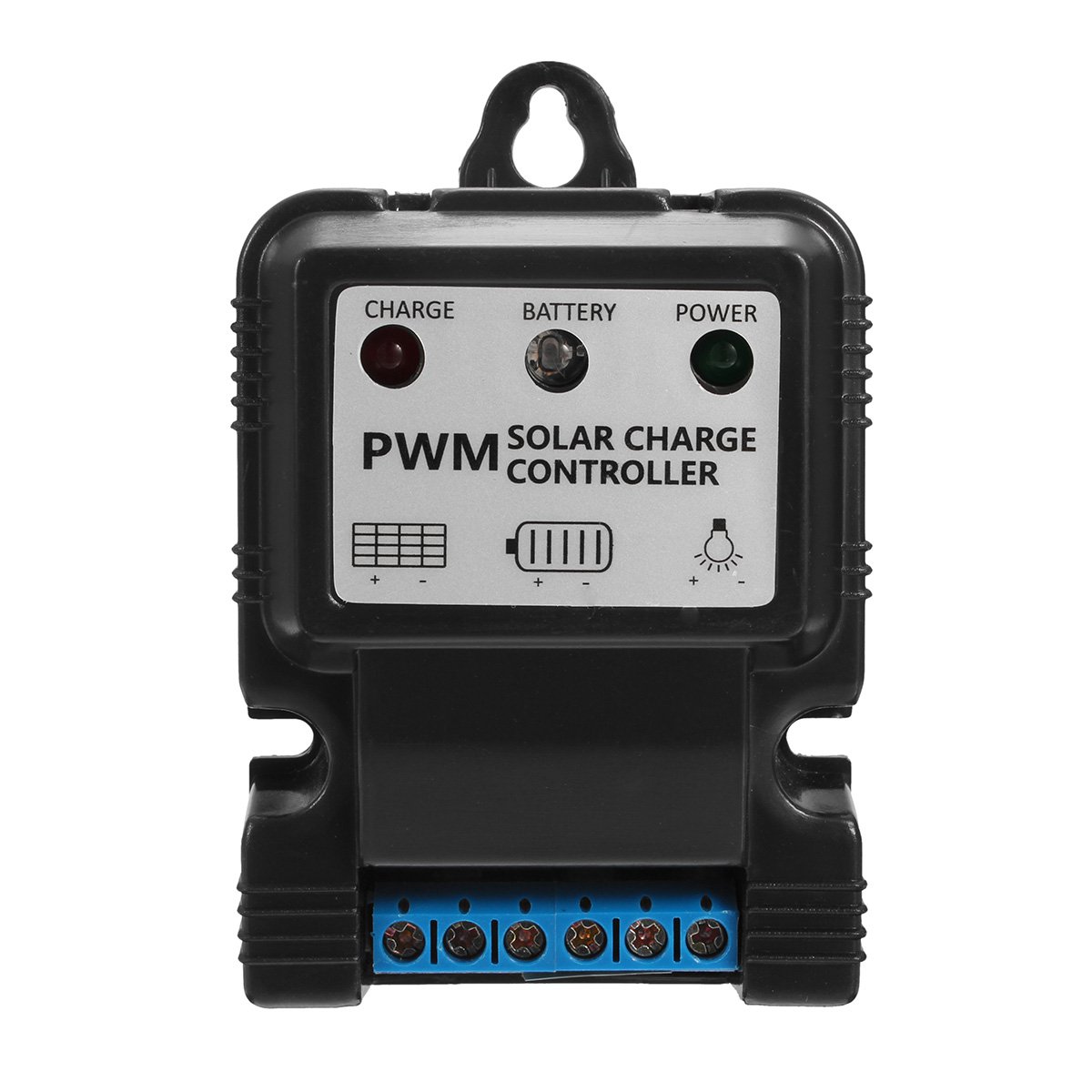

11.1V 5A PWM Solar Power Controller Intelligent Multiple Protection Controller
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features:
-PWM control.-Three-stage charging.-Multiple dimmer mode.-Multiple protection: Overcharge protection / Short circuit protection / Overfall protection / Open circuit protection / Reverse connect protection / Temperature compensation.-IP40 waterproof. Specification:
Charging mode: PMW modeCurrent: 5AVoltage: 11.1 VThe input power: ≤60WThe input voltage: <25VOverload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protectionCharging circuit step-down: ≤700mVDischarge circuit voltage: ≤100mVOvervoltage protection voltage:13.6V±1.5%Overpressure recovery voltage: 13.1V±1.5%Put protection voltage: 9.0V±1.5%Put the recovery voltage: 11.1V±1.5%Charge cut-off voltage: 12.6V ±1.5%Charging return voltage: 11.1V ±1.5%Bai Tianshe don't voltage: 7.0V± 1.5%The night don't voltage: 3.0V±1.5%Working temperature: -30в„ѓ - + 55в„ѓStorage temperature: -45в„ѓ- + 70в„ѓHumidity: 90% RH or lessProtection grade: IP40Size: 53.4 x 68.6 x 22mmInstall line number: AWG22-14/2mm² Package included:
1 x Solar Charge Controller
Detail Pictures:
-PWM control.-Three-stage charging.-Multiple dimmer mode.-Multiple protection: Overcharge protection / Short circuit protection / Overfall protection / Open circuit protection / Reverse connect protection / Temperature compensation.-IP40 waterproof. Specification:
Charging mode: PMW modeCurrent: 5AVoltage: 11.1 VThe input power: ≤60WThe input voltage: <25VOverload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protectionCharging circuit step-down: ≤700mVDischarge circuit voltage: ≤100mVOvervoltage protection voltage:13.6V±1.5%Overpressure recovery voltage: 13.1V±1.5%Put protection voltage: 9.0V±1.5%Put the recovery voltage: 11.1V±1.5%Charge cut-off voltage: 12.6V ±1.5%Charging return voltage: 11.1V ±1.5%Bai Tianshe don't voltage: 7.0V± 1.5%The night don't voltage: 3.0V±1.5%Working temperature: -30в„ѓ - + 55в„ѓStorage temperature: -45в„ѓ- + 70в„ѓHumidity: 90% RH or lessProtection grade: IP40Size: 53.4 x 68.6 x 22mmInstall line number: AWG22-14/2mm² Package included:
1 x Solar Charge Controller
