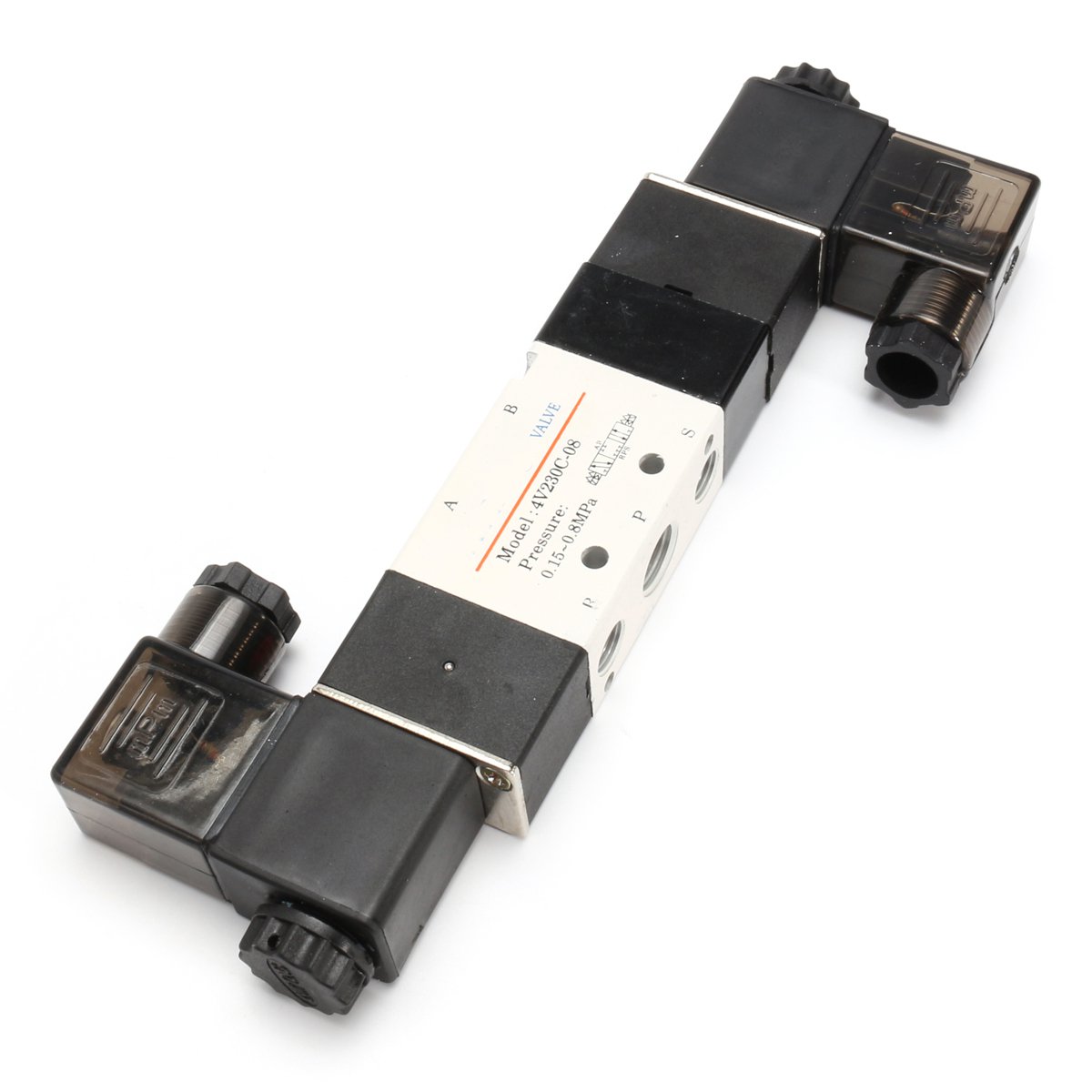

DC 12V Pneumatic Solenoid Air Valve 3 Position 5 Way
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specifications:
Product Name: Pneumatic Solenoid Valve
Model: 4V230C-08
Working Medium: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Type: 3 Position 5 Way
Working Voltage/Power: DC12V, 3(5)W, 29mA
Port Connection: Air Inlet =Air Outlet=Exaust =PT 1/8
Working Temperature: -5C - 60C
Operating Pressure: 1.5 ~ 8kgf/cm2
Max Resistance Pressure: 12 kgf/cm2
Voltage Range : - 15% - +10%
AirInlet Diameter: 11mm/ 0.43"
Air Exhaust Diameter: 8mm/ 0.31"
Black Pull Into Diameter: 11mm/ 0.43"
Wiring Form: Direct Lead Wire or Connector
Material: Aluminum,Plastic
Color: Black&White
Dimensions
Length: 19cm/7.5"
Width: 6.6cm/2.6"
Height: 2.2cm/0.9"
Features:
в—Џ With solenoid operated for control appropriate flow and direction, provide great performance.
в—Џ Stury body have a long lifespan, perfect for electrically driven pneumatic power control. Double head 3 position close type solenoid valve.
Package Included:
1 x Pneumatic Solenoid Valve
More details:
Product Name: Pneumatic Solenoid Valve
Model: 4V230C-08
Working Medium: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Type: 3 Position 5 Way
Working Voltage/Power: DC12V, 3(5)W, 29mA
Port Connection: Air Inlet =Air Outlet=Exaust =PT 1/8
Working Temperature: -5C - 60C
Operating Pressure: 1.5 ~ 8kgf/cm2
Max Resistance Pressure: 12 kgf/cm2
Voltage Range : - 15% - +10%
AirInlet Diameter: 11mm/ 0.43"
Air Exhaust Diameter: 8mm/ 0.31"
Black Pull Into Diameter: 11mm/ 0.43"
Wiring Form: Direct Lead Wire or Connector
Material: Aluminum,Plastic
Color: Black&White
Dimensions
Length: 19cm/7.5"
Width: 6.6cm/2.6"
Height: 2.2cm/0.9"
Features:
в—Џ With solenoid operated for control appropriate flow and direction, provide great performance.
в—Џ Stury body have a long lifespan, perfect for electrically driven pneumatic power control. Double head 3 position close type solenoid valve.
Package Included:
1 x Pneumatic Solenoid Valve
