$11.45
Add to Cart

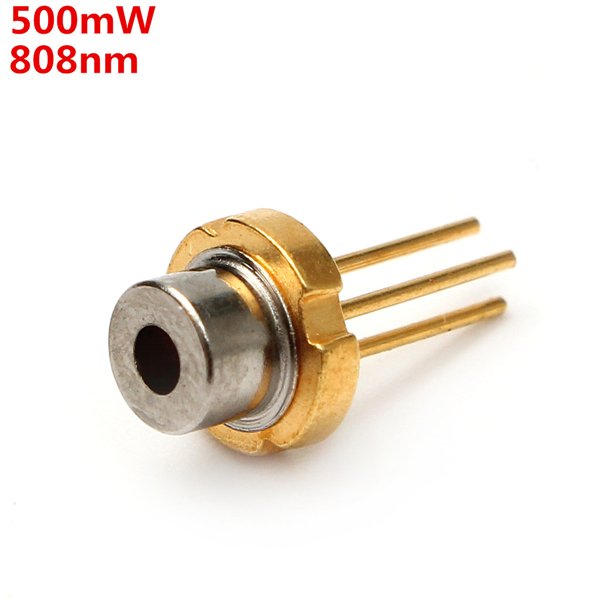

808nm 500mW Infrared IR Laser Diode LD TO-18 5.6mm
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
808nm 500mW Infrared IR Laser Diode LD TO-18 5.6mm
Specifications:
Material: Metal
Size: about 1cm/0.39"
[Conversion: 1cm=0.3937 inch, 1 inch=2.54 cm]
Wavelength: 808nm
Power Output: CW 500mW
Working Current: I<350mA
Working Voltage: 2.2V
Sealed Size: TO18(5.6mm)
Lifespan: >10000 hours
Attention:
1.Laser beam is harm for eyes during process please avoid any directly see on the aperture.
2.Please use the suitable LD power driver, instant reverse current can not exceed than 25uA
reverse voltage cannot exceed than 2V,otherwise the LD will be damaged.
3.Please install the LD well before connecting to the power.The initial input voltage should be zero.
4.To increase/ decrease the current gradually for avoiding any current pulse which will damage the LD.
5.Please store or use the LD under dry and air flow ambient.To avoid any situation of condensation which will damage the LD.
6.Working under high temperature will increase the threshold current and decrease the efficiency conversion,speed up the aging of the LD.
7.The exceed power output will speed up the aging of the LD.
8.To use the LD with enough head dispensing or uner the cooling ambient.
9.Laser diode belongs to electrostatic sensitive components. Should deal with anti-electrostatic method.
To touch the LD directly unless humanbody is well connect with ground. Otherwise the LD will be burned easily.
To wear anti-eletrostatic wrist band is necessary.
Package Included:
1 x 808nm 500mW Laser Diode
More Details:
808nm 500mW Infrared IR Laser Diode LD TO-18 5.6mm
Specifications:
Material: Metal
Size: about 1cm/0.39"
[Conversion: 1cm=0.3937 inch, 1 inch=2.54 cm]
Wavelength: 808nm
Power Output: CW 500mW
Working Current: I<350mA
Working Voltage: 2.2V
Sealed Size: TO18(5.6mm)
Lifespan: >10000 hours
Attention:
1.Laser beam is harm for eyes during process please avoid any directly see on the aperture.
2.Please use the suitable LD power driver, instant reverse current can not exceed than 25uA
reverse voltage cannot exceed than 2V,otherwise the LD will be damaged.
3.Please install the LD well before connecting to the power.The initial input voltage should be zero.
4.To increase/ decrease the current gradually for avoiding any current pulse which will damage the LD.
5.Please store or use the LD under dry and air flow ambient.To avoid any situation of condensation which will damage the LD.
6.Working under high temperature will increase the threshold current and decrease the efficiency conversion,speed up the aging of the LD.
7.The exceed power output will speed up the aging of the LD.
8.To use the LD with enough head dispensing or uner the cooling ambient.
9.Laser diode belongs to electrostatic sensitive components. Should deal with anti-electrostatic method.
To touch the LD directly unless humanbody is well connect with ground. Otherwise the LD will be burned easily.
To wear anti-eletrostatic wrist band is necessary.
Package Included:
1 x 808nm 500mW Laser Diode
More Details:
CN, Jiangsu Sheng
