$10.73
Add to Cart

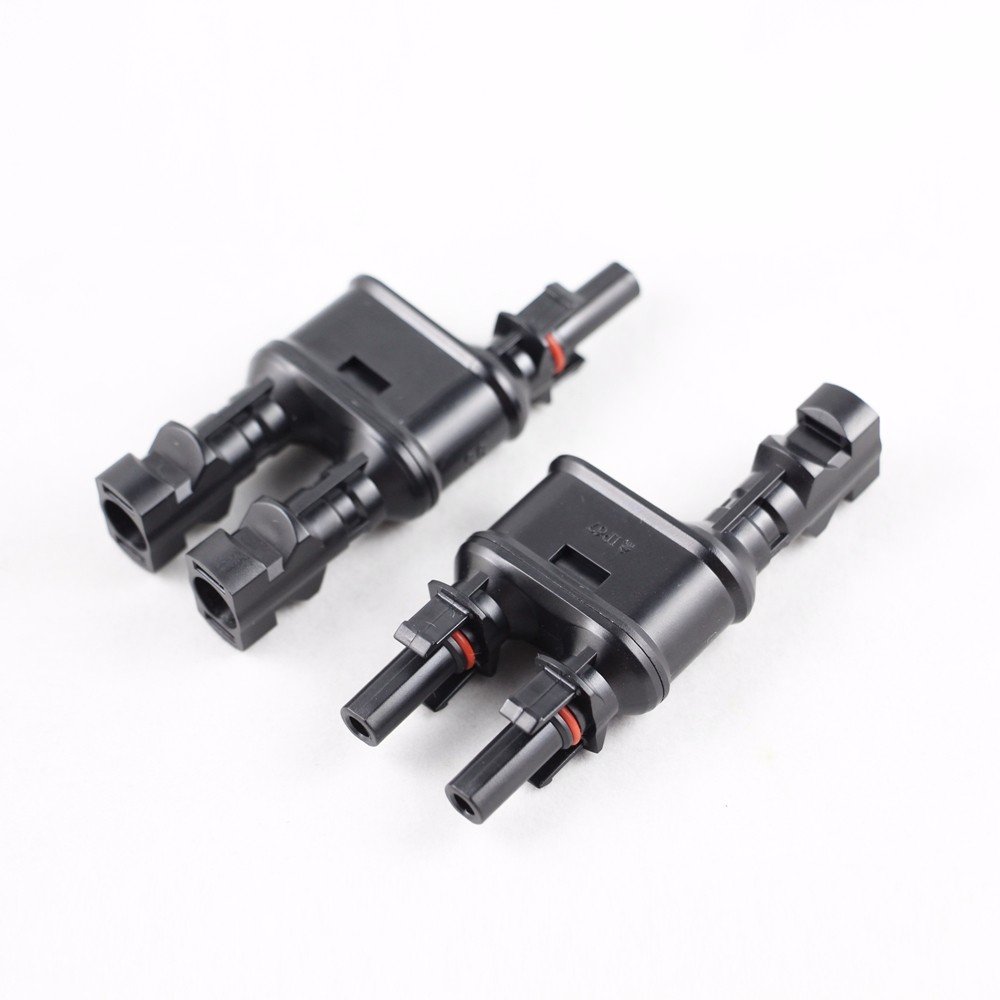

MC4T-A1 Solar PV MC4 Branch Connectors Solar Panel T/Y Branch Cable Splitter Coupler MFF FMM
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
MC4T-A1 Solar PV MC4 Branch Connectors Solar Energy Adapter Solar Panel MC4 T/Y Branch Cable Splitter Coupler Combiner MFF FMM
1. Widely used in the connection of mc4 solar connectors for solar system;2. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;3. To meet the using requirement under bad outdoor condition;4. Adopt tight-hoop connection of cable;5. Fastness of male and female points with stable auto-lock equipment which is easy to lock and open;6. Easy and reliable connection of the solar cables to the pv system (solar panels, inverters).
Features:
·Simple on-site processing.·Mating safety provided by keyed housings.·Mutiple plugging and unplugging cycles.·Accomodates PV cable with deferent insulation diamaters.·High current carrying capacity.·TUV approved. Specification: Product No.: MC4T-A1Rated Voltage: TUV 1000V DC / UL 600V DC Rating Current: 20A~30ASuitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~ 10AWG Pin dimension: 4.0mm Proof voltage: DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection IP: IP67(IEC 60529) Withdrawal Force: 3 50N Insertion Force: 50N Temperature Range: -40oc +85oc Flame Class: UL94V - 0
Package included:
1 x MC4T-A1 Solar PV MC4 Branch Connectors
Details pictures:
MC4T-A1 Solar PV MC4 Branch Connectors Solar Energy Adapter Solar Panel MC4 T/Y Branch Cable Splitter Coupler Combiner MFF FMM
1. Widely used in the connection of mc4 solar connectors for solar system;2. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;3. To meet the using requirement under bad outdoor condition;4. Adopt tight-hoop connection of cable;5. Fastness of male and female points with stable auto-lock equipment which is easy to lock and open;6. Easy and reliable connection of the solar cables to the pv system (solar panels, inverters).
Features:
·Simple on-site processing.·Mating safety provided by keyed housings.·Mutiple plugging and unplugging cycles.·Accomodates PV cable with deferent insulation diamaters.·High current carrying capacity.·TUV approved. Specification: Product No.: MC4T-A1Rated Voltage: TUV 1000V DC / UL 600V DC Rating Current: 20A~30ASuitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~ 10AWG Pin dimension: 4.0mm Proof voltage: DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection IP: IP67(IEC 60529) Withdrawal Force: 3 50N Insertion Force: 50N Temperature Range: -40oc +85oc Flame Class: UL94V - 0
Package included:
1 x MC4T-A1 Solar PV MC4 Branch Connectors
Details pictures:
