EleksMaker 25cm Multifunctional PCB Ruler Electronic Measuring Tool Resistor Capacitor Chip IC SMD D
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:

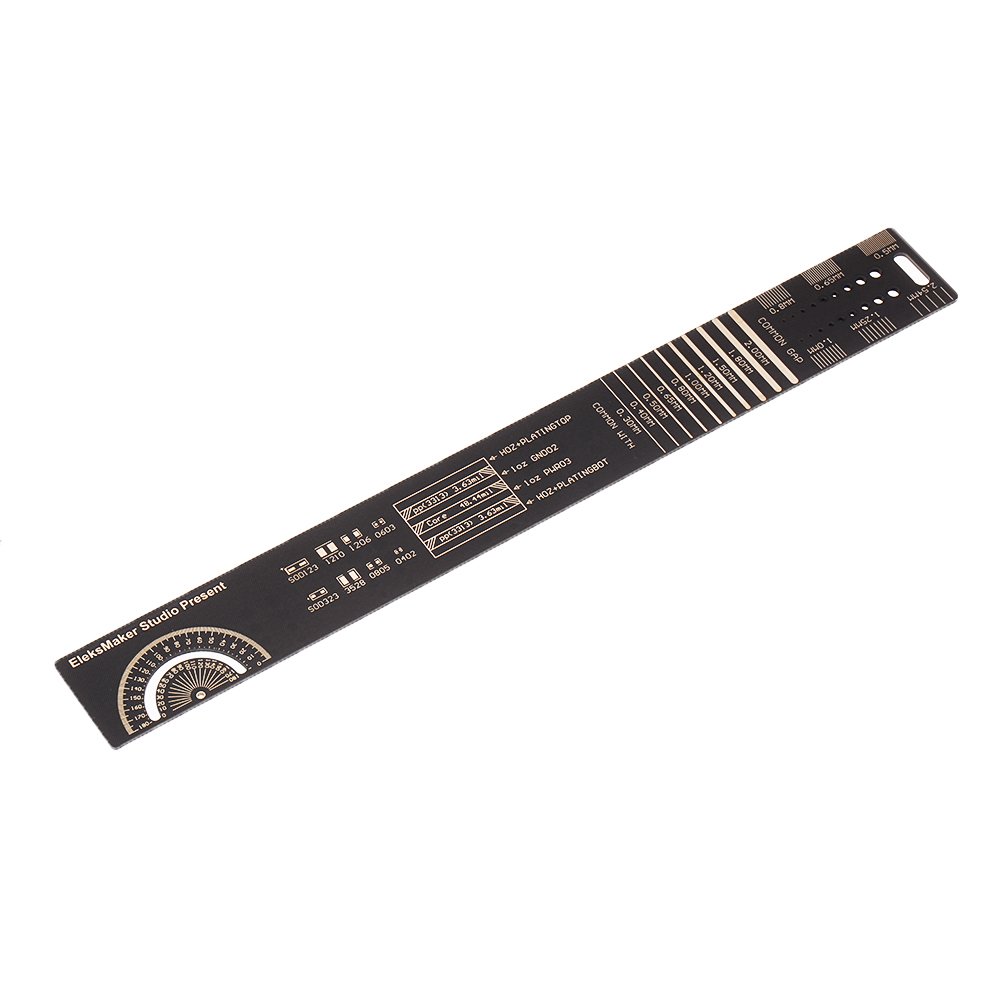

This EleksMaker 25cm PCB ruler integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Specification:
Brand: EleksMaker
Material: Metal
Color: Gold + Black
Length: 25cm
Centimeter Side: 0.1cm Marks
Angle Measurement: 180 Degrees
Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm
Common Bore Diameter Reference Dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Commonly Used IC package:
1. NAND_FLASH_TSOP48
2. QFP7X7-64
3. PLCC-20
4. SOP16
5. TSSOP24
6. SSOP8
7. SOP8
Commonly used CHIP component:
1. TO252-3
2. SOT223
3. SOT89-3
4. SOT23-6
5. SOT23-3
6. SOD123
7. SOD323
8. 1210
9. 3528
10. 1206
11. 0805
12. 0603
13. 0402
14. TO92
Features:
1. In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference.
2. We printed this information on FR-4 gold-plated PCBs.
3. R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance.
Package Included:
1 x 25cm PCB Ruler
