$6.98
Add to Cart

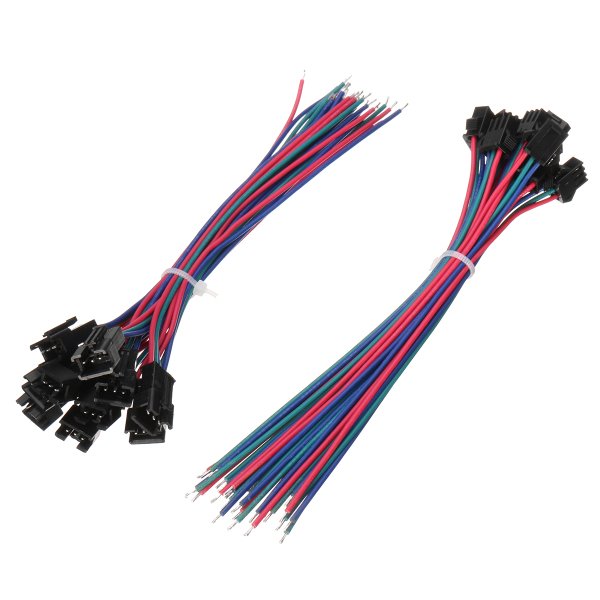

20 Pcs 2.54mm SM 3Pin 22AWG Female Male Housing Connector Plug Wire 15cm Length
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specification:
Series: SM Connector
Pitch ::2.54mm
Position:3
Applicable:22 AWG
Wire length :150mm(Approx. )
End of wire material :solder bare wire
Voltage rating :250V DC/AC
Current rating :3.0A DC/AC
Temperature :-25 to +85°C
Withstand voltage :500 VAC/minute (effective value)
Insulation resistance: ≥1500M Ω
Contact resistance:≤0.02 Ω
Applicable panel thickness : 0.5 to 2.0mm
Feature:
Durable and practical. Long serving time.
Application :wire to wire connectors.
Package included:
10 x SM 2.54mm 3 Pin Male Housing Connector with wire
10 x SM 2.54mm 3 Pin Female Housing Connector with wire
More details:
Series: SM Connector
Pitch ::2.54mm
Position:3
Applicable:22 AWG
Wire length :150mm(Approx. )
End of wire material :solder bare wire
Voltage rating :250V DC/AC
Current rating :3.0A DC/AC
Temperature :-25 to +85°C
Withstand voltage :500 VAC/minute (effective value)
Insulation resistance: ≥1500M Ω
Contact resistance:≤0.02 Ω
Applicable panel thickness : 0.5 to 2.0mm
Feature:
Durable and practical. Long serving time.
Application :wire to wire connectors.
Package included:
10 x SM 2.54mm 3 Pin Male Housing Connector with wire
10 x SM 2.54mm 3 Pin Female Housing Connector with wire
More details:
CN, Jiangsu Sheng
