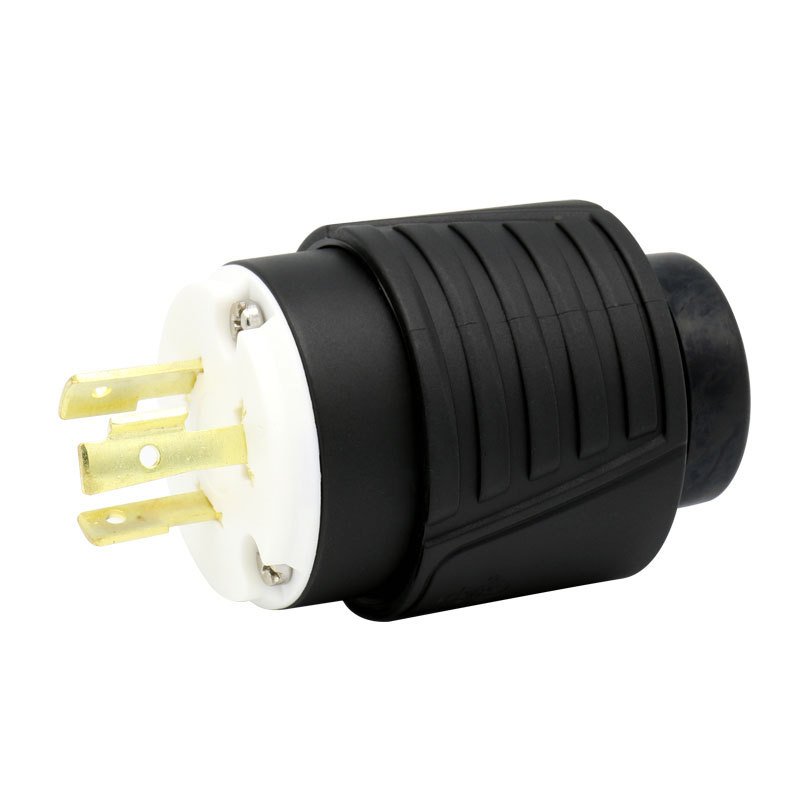

20A 277V Waterproof Standard Power Plug Jack Connector Explosion-proof Power Socket Cap

Specification:Model: L7-20P 2-POLE 3-WIRE GROUNDINGRated current: 20ARated voltage: 277VType: Wiring socketWiring Type:Back wirePlug: American connectorScope of application: Industrial Terminal Accommodation:#14-#10 AWG Flammability: Meets UL94 requirements; V1 ratedTemperature Rise: Max. 30℃ after 200 cycles of 30A (DC)Contact resistance: Contact resistance should not exceed 30mΩ. Insulation resistance: Insulation resistance between pins should not be less than 100MΩ.
Features:-ROHS EU environmental standards to reduce damage to the environment.-Smooth current flow, not easy to heat. Easy wiring and large contact area.-Rubber shell, protect the body from damage, waterproof, oil-proof, anti-corrosion, anti-loose, anti-fall, prolong the service life of machinery-The cable connector is divided into a rubber plug and a rubber intermediate socket. The plug and socket can be locked after connection, making the connection of the power supply tight and not easy to fall off, which can prevent the power interruption caused by human negligence.
Package Included:1 x Explosion-proof Socket Plug
