$10.87
Add to Cart

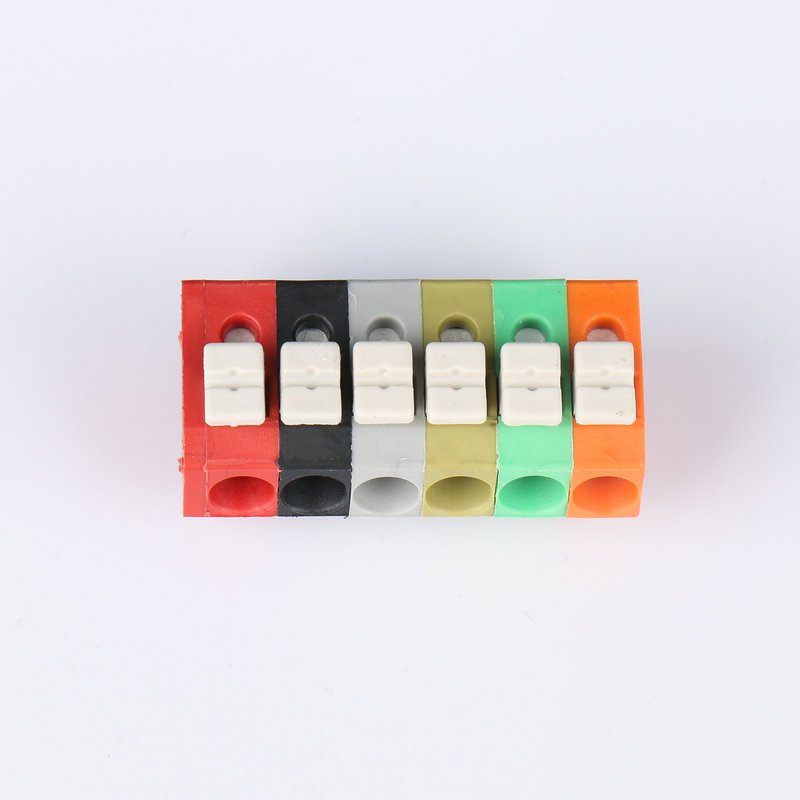

10PCS BEST 6 Pin Plug-in Brass Wire Connector Terminals LED Flame Retardant Terminal Block Connector
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
SpecificationBrandBESTType6 PinWire range20-12AWGVoltage rating300VCurrent rating15AWithstanding Voltage2,000VStripping length9.0mmMaterialInsulator(housing)PA66, UL94V-0Pin HeaderBrass Tin PlatedContactStainless SteelOperating-40°C to +105°CMax soldering+250°C For 5 seconds
Features:
- The shell is nylon PA66, flame retardant 94V-0 grade, in accordance with European ROHS standards;
- It has elasticity, rigidity and resistance to the corrosion of most chemical reagents, and has a strong resistance to leakage current breakdown. It allows continuous working at 105°C and maintains stability. The short-term high temperature limit is 165°C, and the low temperature limit is -35°C;
- Conductor material - high precision imported copper (C5210), electroplated tin,
- Wire terminals are widely used in power supply, transformer, electronic appliances, communication field;
Operation method:
Press the button and insert the single or multi-strand wire (multi-strand wire needs soldering tin) with a length of 8-9mm into the hole completely.
Disassembly method:
Press the button and pull it to remove the wire. There is a test hole above the hole for testing.
Package Included:
10PCS 6 Pin Wire Connectors
Features:
- The shell is nylon PA66, flame retardant 94V-0 grade, in accordance with European ROHS standards;
- It has elasticity, rigidity and resistance to the corrosion of most chemical reagents, and has a strong resistance to leakage current breakdown. It allows continuous working at 105°C and maintains stability. The short-term high temperature limit is 165°C, and the low temperature limit is -35°C;
- Conductor material - high precision imported copper (C5210), electroplated tin,
- Wire terminals are widely used in power supply, transformer, electronic appliances, communication field;
Operation method:
Press the button and insert the single or multi-strand wire (multi-strand wire needs soldering tin) with a length of 8-9mm into the hole completely.
Disassembly method:
Press the button and pull it to remove the wire. There is a test hole above the hole for testing.
Package Included:
10PCS 6 Pin Wire Connectors
