Specification:
Color: Yellow, Blue, Red, White
Measurement System: Metric
Size: 300PCS Solder Connectors
Style: Solder Seal Butt Connectors
Special Features: 1 Step Solder and Seal Process
Material: Polyolefin Tubing with Hot Melt Adhesive & Solder inside;
Specification Met: ① Minimum Shrink Temperature: 80℃, ② Minimum Temperature for Solder to Melt: 138℃


Features:
✿ PACKAGE: 4 COLORS(70PCS White, 100 PCS Blue,100PCS Red,30PCS Yellow) . Dual-walled Design: Polyolefin tubing outside and hot melt rings inside effectively improve waterproof performance and prevent wire corrosion.

✿ EASY OPERATION: - Shrink Ratio 3:1. NO Crimping Needed. Transparent sleeve provides precise inspection when strip and insert wires inside. Color-coded tubing makes it easy for you to pick up for use.

✿ DURABLE CONNECTION: - Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding. Your wire will never slip out of the connector.

✿ WIDE APPLICATIONS: - Ideal used for vehicle, motorcycle, boat, DIY electrical wirings and other outdoor applications. Sopoby Solder Connector Kit compliants with ROHS, ISO 9001:2008, SGS and CE standards.


Characteristic:
● Shrinkage Ratio 3:1
● An easy One-Step Wire Connections.
● Easy Identification: Color coded connector tubing.
● Polyolefin heat shrink butt connectors improve Pullout Strength.
● High-quality wire connectors in Seal, Strain Relief, Cable Check and Insulation.
● Melted Solder ensures wires Strongly Connected and avoids wires slipping out from the terminal.
● Comply with all Relevant Standards: ROHS, ISO 9001:2008, SGS and CE standards.

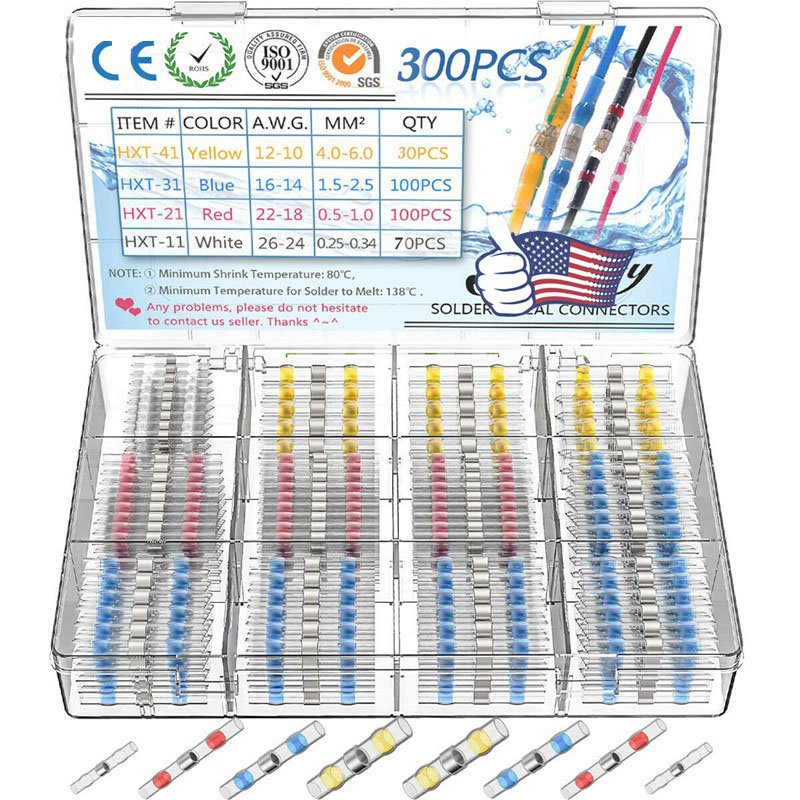

SIZE:
70 x White Connectors: Diameter 1.7 mm
Cable cross-section 0.25-0.34 mm²(A.W.G.:26-24).

100 x Blue Connectors: Diameter 4.5mm
Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14);

100 x Red Connectors: Diameter 2.7 mm
Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18);

30 x Yellow Connectors: Diameter 6.0 mm,
Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10).


Package Included:
300PCS Solder Connectors
