Specifications:
Power source: 110-240VIAC
Rated load:Max. 800W
Power frequency: 50/60Hz
Power consumption: 0.45W(static 0. 1W)
Time delay: 5Sec.~5Min.(adjustable)
Installation height: >1.5 3.5m
Detection angle: 360°
Detection motion speed: 0.6-1 .5m/s
Ambient light: <5-2000Lux
Working humidity: <93%RH
Working temperature: -20~+40°C
Detection distance : 8 m.max (dia.)

Features:

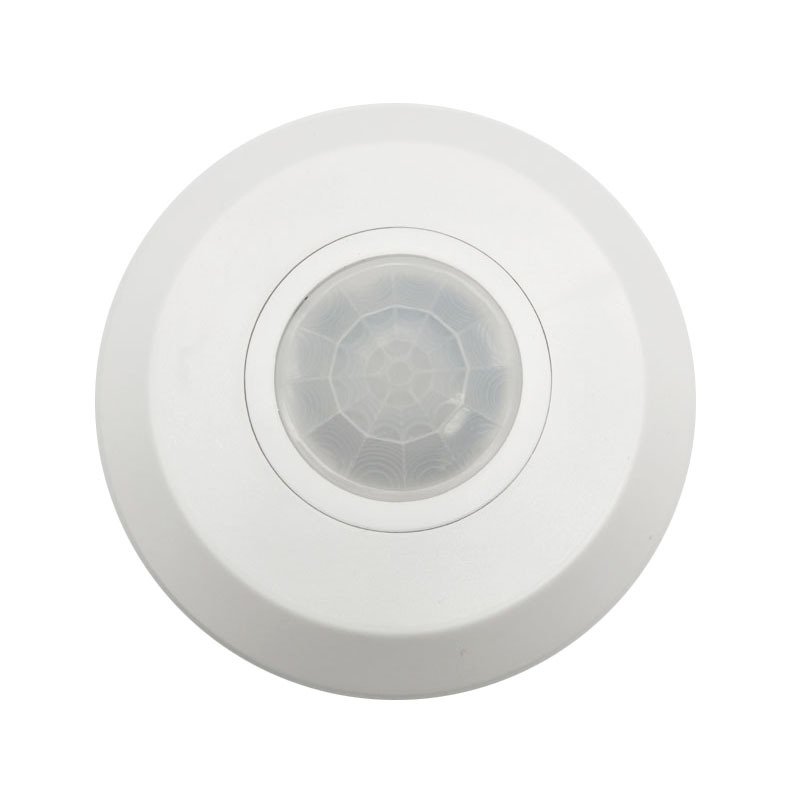

- The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuitand SMT.
- It gathers automatism, convenient safe,saving-energy and practical functions, Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically.
- It is easy to install and used widely, possessing the functions of power show and detecting show.

Installation:
1. Switch off the power.
2. Push down LED according to the sketch map in packing, take down the top cover by anti-clockwise turn.
3. The sensor is fixed on the selected position with the inflated screw:
4. Connect the power and the load into the connection-wire column according to the sketch map.
5. Put the top cover on the sensor, turn it clockwise and you will hear "pong", so you can use it.

Package Included:
1x Body infrared sensor switch
