Specification:
Model: AM2311
Type: Digital Thermometer and Hygrometer
Accuracy level: 0.1
Resolution: 0.1
Size: 20*44.4*12.9 (mm)
Weight: 0.0143 (kg)
Scope of application: Agricultural production, scientific research and education, industrial production, public service, health care, communication room
Material: ABS plastics
Temperature measurement limit: - 40 ~+80 (℃)
Humidity measurement limit: 0-99.9% (RH)
Accuracy of temperature measurement: + - 0.5 (℃)
Temperature resolution: 0.1  (℃)
Accuracy of humidity measurement: + - 3% (RH)
Humidity resolution: 0.1 (RH)
Using Batteries: No
Sensor: High Quality Capacitive Temperature Sensor
Output: Standard Single Bus

Features:
- Ultra-low Energy Consumption
- Long transmission distance
- Full automatic calibration
- Capacitive humidity sensor
- Complete interchange
- Standard Digital Single Bus Output
- Excellent long-term stability
- Using High Accuracy Temperature Measuring Element

Descripotion:
AM2311 humidity sensitive capacitor digital temperature and humidity module is a temperature and humidity composite sensor which contains the output of calibrated digital signal. It uses special digital module acquisition technology and temperature and humidity sensing technology to ensure that the product has high reliability and excellent long-term stability. The sensor consists of a capacitive humidity sensor and a high accuracy temperature sensor, and is connected with a high performance 8-bit single chip computer. Therefore, the product has the advantages of excellent quality, ultra-quick response, strong anti-interference ability and high cost performance. Each sensor is calibrated in an extremely accurate humidity calibration laboratory. Calibration coefficients are stored in the form of program in the single chip computer. These calibration coefficients are called in the process of signal processing inside the sensor. Standard single bus interface makes system integration easy and fast. Ultra-small size, extremely low power consumption, signal transmission distance can reach more than 20 meters, making it the best choice for all kinds of applications and even the most demanding applications. The product is easy to connect with 3 leads (single bus interface). Special encapsulation forms can be provided according to user needs.

Package Includes:

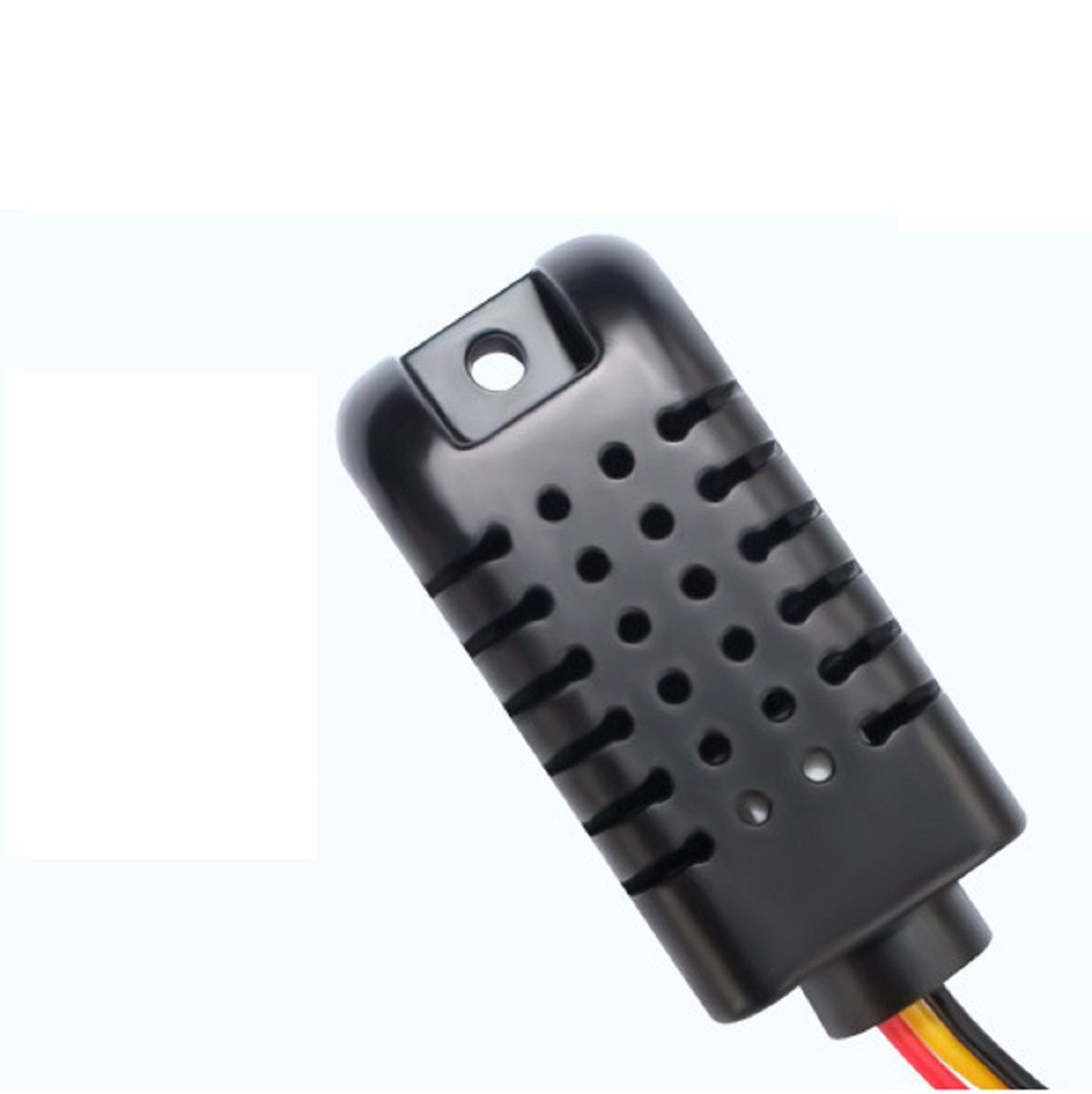

1 X AM2311 Digital Temperature and Humidity Sensor
