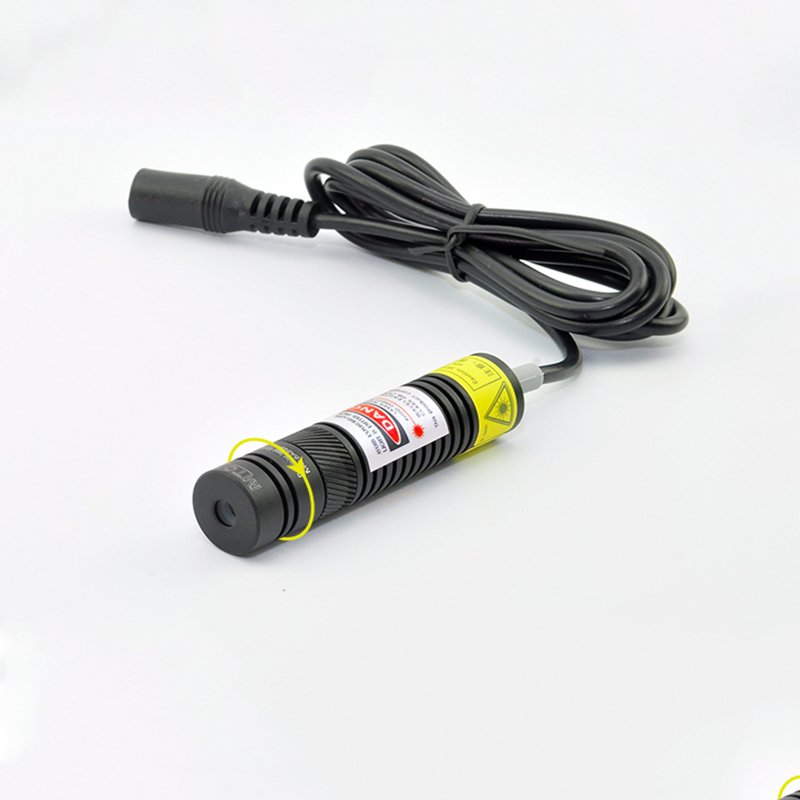

MTOLASER 200mW 648nm Red Line Laser Module Generator Variable Focus Industrial Marking Position Alig
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
This variable focus 150mW 648nm red line laser module employs qualified 648nm red laser diode, generates the stable and reliable red laser line applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
Specification:
BrandMTOLASERLaser Power200mWWavelength648nmBeam ShapeLineVariable FocusYESOutput LightVisible LightWorking VoltageDC 5VWorking Current40-320mAOpticsFocus Lens + Glass Wave Line Lens Shell MaterialAviation AluminumOperation Temperature±50℃Service Life8000hDimension (D*L)16mm x 68mm (With Locking Ring) Optimum Working Distance Within 10m, indoor ( Can not used for a long time, 20 minutes working is more acceptable.Adapter PlugUS PlugAdapter Input Voltage AC 100-240V 0.3A 50-60Hz
Features:
1. 200mW stable output power, variable focus, 648nm red line laser module.
2. Good heat dissipation ensures its long service life.
3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.
5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm
Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.
Package Included:
1 x Red Line Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
More Details:
This variable focus 150mW 648nm red line laser module employs qualified 648nm red laser diode, generates the stable and reliable red laser line applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
Specification:
BrandMTOLASERLaser Power200mWWavelength648nmBeam ShapeLineVariable FocusYESOutput LightVisible LightWorking VoltageDC 5VWorking Current40-320mAOpticsFocus Lens + Glass Wave Line Lens Shell MaterialAviation AluminumOperation Temperature±50℃Service Life8000hDimension (D*L)16mm x 68mm (With Locking Ring) Optimum Working Distance Within 10m, indoor ( Can not used for a long time, 20 minutes working is more acceptable.Adapter PlugUS PlugAdapter Input Voltage AC 100-240V 0.3A 50-60Hz
Features:
1. 200mW stable output power, variable focus, 648nm red line laser module.
2. Good heat dissipation ensures its long service life.
3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.
5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm
Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.
Package Included:
1 x Red Line Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
More Details:
CN, Jiangsu Sheng
