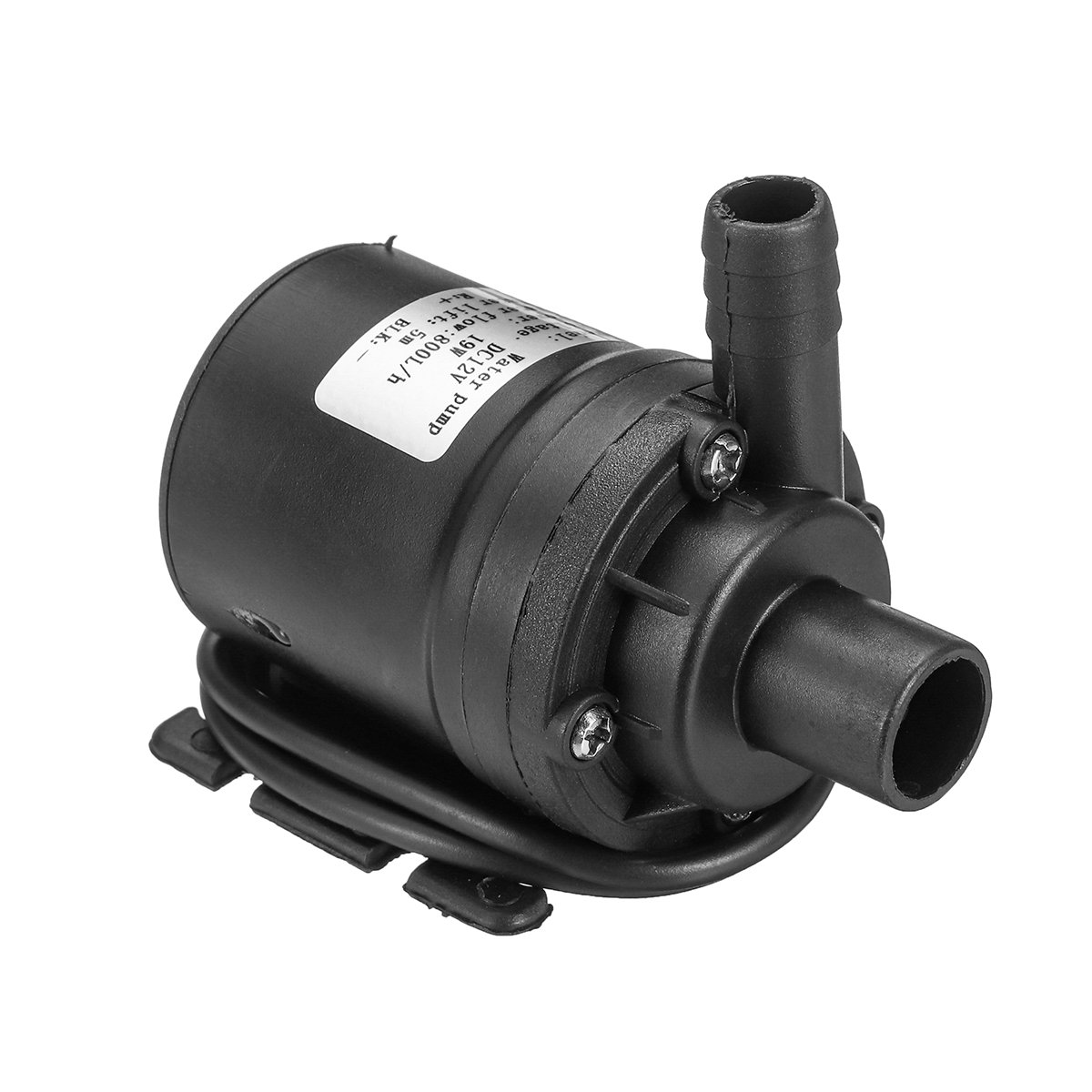

ZYW680 Mini DC 24V Water Pump 5.5m Lift Ultra Quiet Brushless Motor Submersible Water Pump

ZYW680 Ultra Quiet Mini DC 24V 5.5m Lift Brushless Motor Submersible Water Pump Features:- Uses advanced electronic components and high-quality wear-resistant shaft- Long working life, continuous power-on working time of more than 10,000 hours.- It is smooth operation, high efficiency, good performance.- Small volume, low noise, safety and environmental protection. Specifications:Name: Water PumpModel: ZYW680 Housing material: ABSPump shaft material: zirconia ceramicRotor material: ferrite, POMVoltage: DC 24V Power: 19WMaximum Rated Current: 1000MAFlow Rate: 800L/h(Max.)Water lift: 2.5-5.5mMaximum speed: 8000rpmPump outlet diameter: ID: 8mm, OD:11.5mmPump inlet diameter: ID:13mm, OD: 15.8mmWorking environment temperature: 1-70 ℃Noise: < 35 db (water) under operationDrive mode: Brushless, magnetic isolationConveying medium: Water, oil, and other acid-base solutionsPump shaft position: horizontalImpeller structure: open impellerImpeller suction method: single suction typeWaterproof rating: IP68 (dive installation)Cable line: 50cmSizes:About 7.7x4.2x6.5cm/3x1.7x2.6in Package include:1 x Brushless Motor Water Pump Usage:The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.) Common Troubleshooting:1.The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).2. When the pump does not run water. (There is air in the pump or in the pipeline.) Note:1.Do not take the wrong pump positive and negative.2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.4.The pump is suitable for medium temperature 1 ℃ -60 ℃.
