$91.72
Add to Cart

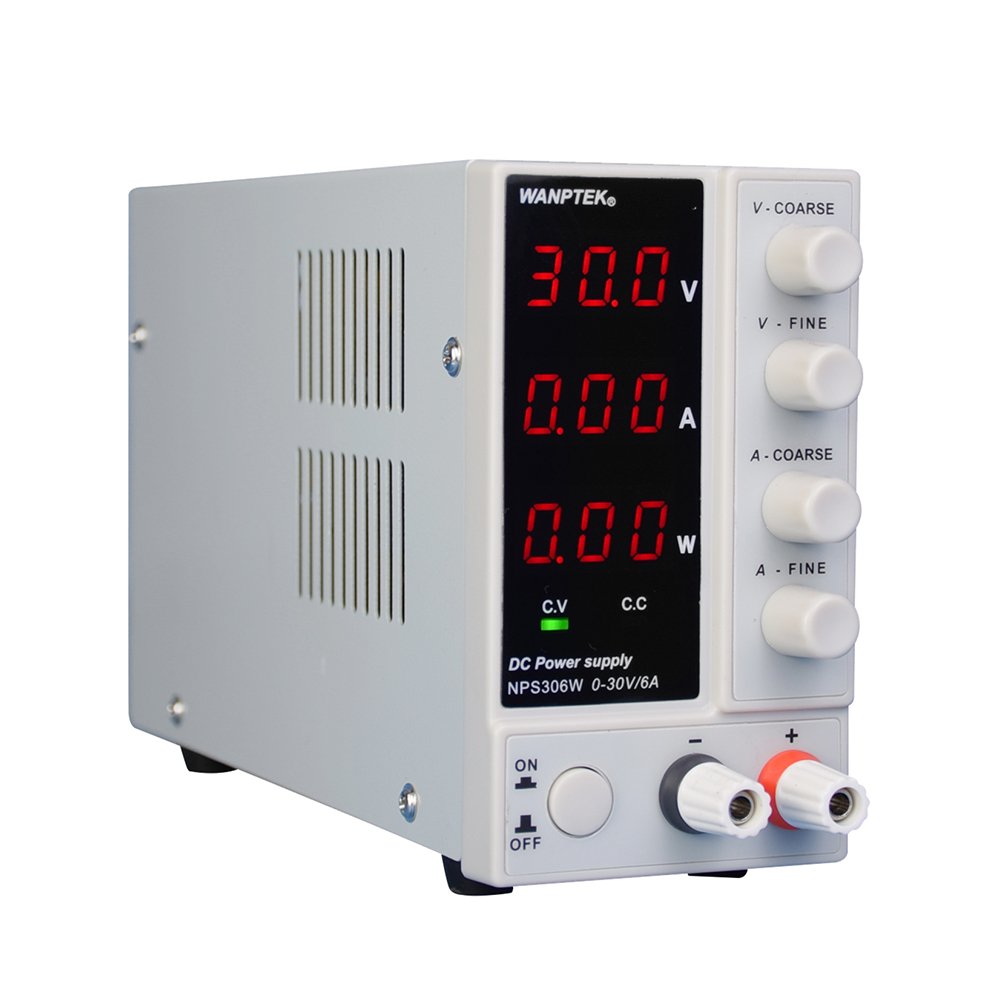

Wanptek NPS306W 110V/220V 0-30V 0-6A Adjustable Digital DC Power Supply 180W Regulated Laboratory Sw
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Product description: The Wanptek NPS-W series is a three-window display mini DC power supply that simultaneously displays voltage, current, and power.This product improves the shortcomings of traditional linear power supplies that are bulky, heavy, and inefficient.The output voltage and current of the product can be controlled and adjusted by coarse adjustment and fine adjustment potentiometer respectively, so it provides more convenience and precision in voltage and current adjustment.
Specification:
Product modelNPS306WOutput Voltage0~30VOutput Curent0~6AOutput Power180WWorkling environmentInput voltage:AC 230V/115V±10%; 50Hz/60HzWorking temperature:0C~40℃; relative humidity: <80%RHStorage temperature: -10℃~70℃; relative humidity: <70%RHConstant voltage CVVoltage stability: 0.1%±3mVLoad stability: 0.2%±3mVRipple voltage:=0. 5% Vp-p0 to rated voltage continuously adjustableConstant current CCCurrent stability:0.1%±3mALoad stability:0.2%±3mARipple current: =0.5% Vp-pRecovery time: =500usTemperature coefficient: =100ppm/℃0 to rated current continuously adjustableDisplayThree-window digital tube display: voltage, current, powerDisplay accuracy: 0.5%±digitsDisplay resolution: voltage (0.1V), current (0.01A), Power (0.1W/1W)Size and weightProduct size:70(W)x 130(H)x 230(L)mmNet weight: 1.3Kg
Features: - Small size, light weight and high power density.- Constant voltage, constant current automatic switching.- Voltage, Current, Power 3 window display.- Temperature controlled fan heat dissipation, low noise and long life. Application field: 1. Production line testing.2. Mobile phone, computer, electrical maintenance.3. Product aging, plating.4. Charge the battery.5. Laboratory, research and teaching.6. Everything else needs a DC regulated power supply.
Package include:
1 x NPS306W DC Power Supply
1 x Output Test Line
1 x Manual
More details:
Specification:
Product modelNPS306WOutput Voltage0~30VOutput Curent0~6AOutput Power180WWorkling environmentInput voltage:AC 230V/115V±10%; 50Hz/60HzWorking temperature:0C~40℃; relative humidity: <80%RHStorage temperature: -10℃~70℃; relative humidity: <70%RHConstant voltage CVVoltage stability: 0.1%±3mVLoad stability: 0.2%±3mVRipple voltage:=0. 5% Vp-p0 to rated voltage continuously adjustableConstant current CCCurrent stability:0.1%±3mALoad stability:0.2%±3mARipple current: =0.5% Vp-pRecovery time: =500usTemperature coefficient: =100ppm/℃0 to rated current continuously adjustableDisplayThree-window digital tube display: voltage, current, powerDisplay accuracy: 0.5%±digitsDisplay resolution: voltage (0.1V), current (0.01A), Power (0.1W/1W)Size and weightProduct size:70(W)x 130(H)x 230(L)mmNet weight: 1.3Kg
Features: - Small size, light weight and high power density.- Constant voltage, constant current automatic switching.- Voltage, Current, Power 3 window display.- Temperature controlled fan heat dissipation, low noise and long life. Application field: 1. Production line testing.2. Mobile phone, computer, electrical maintenance.3. Product aging, plating.4. Charge the battery.5. Laboratory, research and teaching.6. Everything else needs a DC regulated power supply.
Package include:
1 x NPS306W DC Power Supply
1 x Output Test Line
1 x Manual
