$97.92
Add to Cart

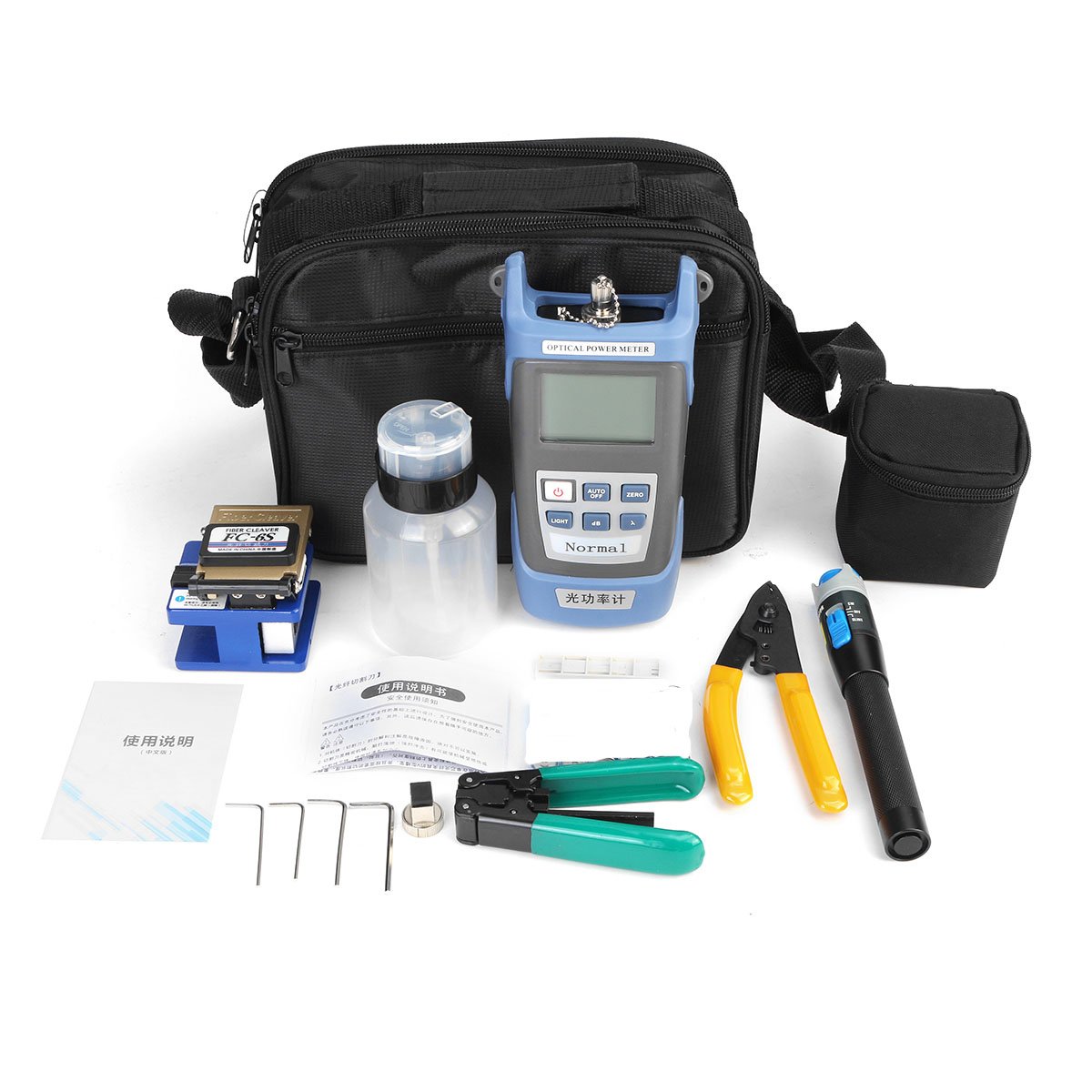

13Pcs Fiber Optical FTTH Power Meter Cleaver Red Light Test Pen Cable Cutter Piper Kit
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Fiber Optical FTTH Tool Kit Fiber Cleaver & Optical Power Meter Finder
Product DescriptionFiber cleaverTechnical Parameters:Applicable bare fiber diameter: 125umApplicable fiber core number: single coreApplicable fiber coating diameter: 0.25 & 0.9mmNeed to strip length before fiber cutting: fiber cutting length +18mm or moreFiber cutter length: 9-16mm (0.25mm) 10-16mm (0.9mm)Representative value of the cutting angle: ≤0.5°Blade life: 48000 core wireSize: 75x63x63mm Operation method:1. Open the switch fiber plate cover and open the plate of the single-core fiber clamp. Confirm the position of the kni-fe holder on the front side2. Place the fiber in the V-groove of the single-core fiber clamp and align the fiber coating to remove the boundary line and the scale on the fixture, as needed.3. Cap the clip of the single-core fiber clamp to clamp the fiber. Close the fiber platen cover and push the tool holder inward to cut the fiber4. Open the fiber-optic panel cover and open the fiber-optic clip while opening the clip of the single-core fiber clamp. Don't forget to remove fiber debris. Optical power meterTechnical ParametersWavelength range: 800~1700nmConnector: FC/SC/ST (optional)Probe type: InGaAsPower measurement range: -70~+3 or -50~+20Uncertainty: ±5%Standard wavelength (nm): 850/1300/1310/1490/1550/1625Display resolution: linear display: 0.1%, logarithmic display: 0.01dBmRed light working wavelength (one machine series): 650nmRed light power (one machine series) (MW): 1, 5, 10, 20, 30 (optional)Working temperature: -20~+60°CStorage temperature: -25~+70°CAutomatic shutdown time: 10minBattery continuous working time: ≥48hSize: 180*100*48mm Key Description1. Switching machine: press within one second to start, then press this button to shut down2. AUTO/OFF: Press this button to turn off or turn on the auto power off function. The LCD will display the prompt at the top left corner.3. ZERO: Press this key to realize automatic clearing, set or set the current test result as reference value, and perform relative power measurement. The display will show the set dBm value4. LIGHT: This button can turn the backlight on or off, and the LCD will display the prompt at the top left corner.5. dB: Change the data display unit. The dBm, dB, and nW units can be selected in sequence, and the test data will be displayed in the corresponding structure. The conversion relationship of nW and dBm: 10log(nw)=(dBm)6. λ: 6 wavelengths can be selected (850nm/1300nm/1310nm/1490nm/1550nm/1625nm). This setting is displayed simultaneously on the LCD. Features:● High precision cutting kni-fe● Practical and durable● A convenient set, full-featured Application: Fiber Tools Package included:●1 x Optical Fiber Red Light Test Pen●1 x CFS-2 Duplex Optical Fiber Coating Layer Stripping Pliers●1 x Miller clamp●1 x High Precision Optical Power Meter●1 x Fiber Cleaver●1 x Adapter●1 x Bottle●1 x Fixed length●4 x Hex wrenches●1x Toolkit with Detachable Straps(Battery is not included)
More details:
Product DescriptionFiber cleaverTechnical Parameters:Applicable bare fiber diameter: 125umApplicable fiber core number: single coreApplicable fiber coating diameter: 0.25 & 0.9mmNeed to strip length before fiber cutting: fiber cutting length +18mm or moreFiber cutter length: 9-16mm (0.25mm) 10-16mm (0.9mm)Representative value of the cutting angle: ≤0.5°Blade life: 48000 core wireSize: 75x63x63mm Operation method:1. Open the switch fiber plate cover and open the plate of the single-core fiber clamp. Confirm the position of the kni-fe holder on the front side2. Place the fiber in the V-groove of the single-core fiber clamp and align the fiber coating to remove the boundary line and the scale on the fixture, as needed.3. Cap the clip of the single-core fiber clamp to clamp the fiber. Close the fiber platen cover and push the tool holder inward to cut the fiber4. Open the fiber-optic panel cover and open the fiber-optic clip while opening the clip of the single-core fiber clamp. Don't forget to remove fiber debris. Optical power meterTechnical ParametersWavelength range: 800~1700nmConnector: FC/SC/ST (optional)Probe type: InGaAsPower measurement range: -70~+3 or -50~+20Uncertainty: ±5%Standard wavelength (nm): 850/1300/1310/1490/1550/1625Display resolution: linear display: 0.1%, logarithmic display: 0.01dBmRed light working wavelength (one machine series): 650nmRed light power (one machine series) (MW): 1, 5, 10, 20, 30 (optional)Working temperature: -20~+60°CStorage temperature: -25~+70°CAutomatic shutdown time: 10minBattery continuous working time: ≥48hSize: 180*100*48mm Key Description1. Switching machine: press within one second to start, then press this button to shut down2. AUTO/OFF: Press this button to turn off or turn on the auto power off function. The LCD will display the prompt at the top left corner.3. ZERO: Press this key to realize automatic clearing, set or set the current test result as reference value, and perform relative power measurement. The display will show the set dBm value4. LIGHT: This button can turn the backlight on or off, and the LCD will display the prompt at the top left corner.5. dB: Change the data display unit. The dBm, dB, and nW units can be selected in sequence, and the test data will be displayed in the corresponding structure. The conversion relationship of nW and dBm: 10log(nw)=(dBm)6. λ: 6 wavelengths can be selected (850nm/1300nm/1310nm/1490nm/1550nm/1625nm). This setting is displayed simultaneously on the LCD. Features:● High precision cutting kni-fe● Practical and durable● A convenient set, full-featured Application: Fiber Tools Package included:●1 x Optical Fiber Red Light Test Pen●1 x CFS-2 Duplex Optical Fiber Coating Layer Stripping Pliers●1 x Miller clamp●1 x High Precision Optical Power Meter●1 x Fiber Cleaver●1 x Adapter●1 x Bottle●1 x Fixed length●4 x Hex wrenches●1x Toolkit with Detachable Straps(Battery is not included)
More details:
