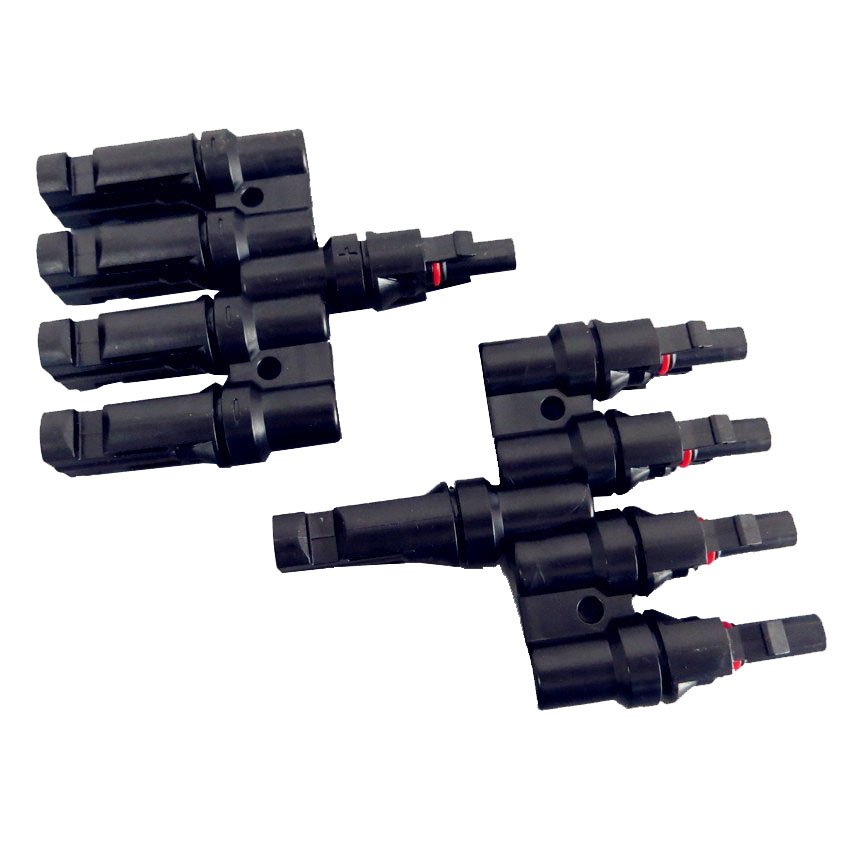

MC4 T-type 4 Branch Five Way Parallel Connector Solar Panel Adapter Photovoltaic Connector
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specification:
NameMC4 T-type 4 branch parallel connectorColorBlackRated voltageTUV 1000VDC / UL 600VDCRated current30AProtection levelCIass IIPollution degree 2Adapter cable2.5mm2-6.0mm2 / 14AWG-10AWGConnector insulation materialPPOTest voltageDC 8KV 1minTerminal sizeΦ4.0mmTerminal materialCopper tin platingContact resistance≤ 5mΩIP ratingIP67 (IEC 60529)Pulling force≥ 50NInsertion force≤ 50NInsulation materialPPOOperating temperature range-40°C~ +85°CFlame retardant ratingUL94V-0
Feature:
* MC4-parallel splitter (compatible with MC4 connector) is a special connector when solar photovoltaic panels are connected in parallel to form an array module. It has the characteristics of quick and reliable connection, waterproof and dustproof, easy to use, etc.
* The outer casing has strong anti-aging and ultraviolet resistance. The connection of the cable is connected by pressing and tightening, and the fixing of the male and female heads has a stable self-locking mechanism and is easy to open and close.
Package Included:
1 x T-type 4 branch parallel connector
NameMC4 T-type 4 branch parallel connectorColorBlackRated voltageTUV 1000VDC / UL 600VDCRated current30AProtection levelCIass IIPollution degree 2Adapter cable2.5mm2-6.0mm2 / 14AWG-10AWGConnector insulation materialPPOTest voltageDC 8KV 1minTerminal sizeΦ4.0mmTerminal materialCopper tin platingContact resistance≤ 5mΩIP ratingIP67 (IEC 60529)Pulling force≥ 50NInsertion force≤ 50NInsulation materialPPOOperating temperature range-40°C~ +85°CFlame retardant ratingUL94V-0
Feature:
* MC4-parallel splitter (compatible with MC4 connector) is a special connector when solar photovoltaic panels are connected in parallel to form an array module. It has the characteristics of quick and reliable connection, waterproof and dustproof, easy to use, etc.
* The outer casing has strong anti-aging and ultraviolet resistance. The connection of the cable is connected by pressing and tightening, and the fixing of the male and female heads has a stable self-locking mechanism and is easy to open and close.
Package Included:
1 x T-type 4 branch parallel connector
