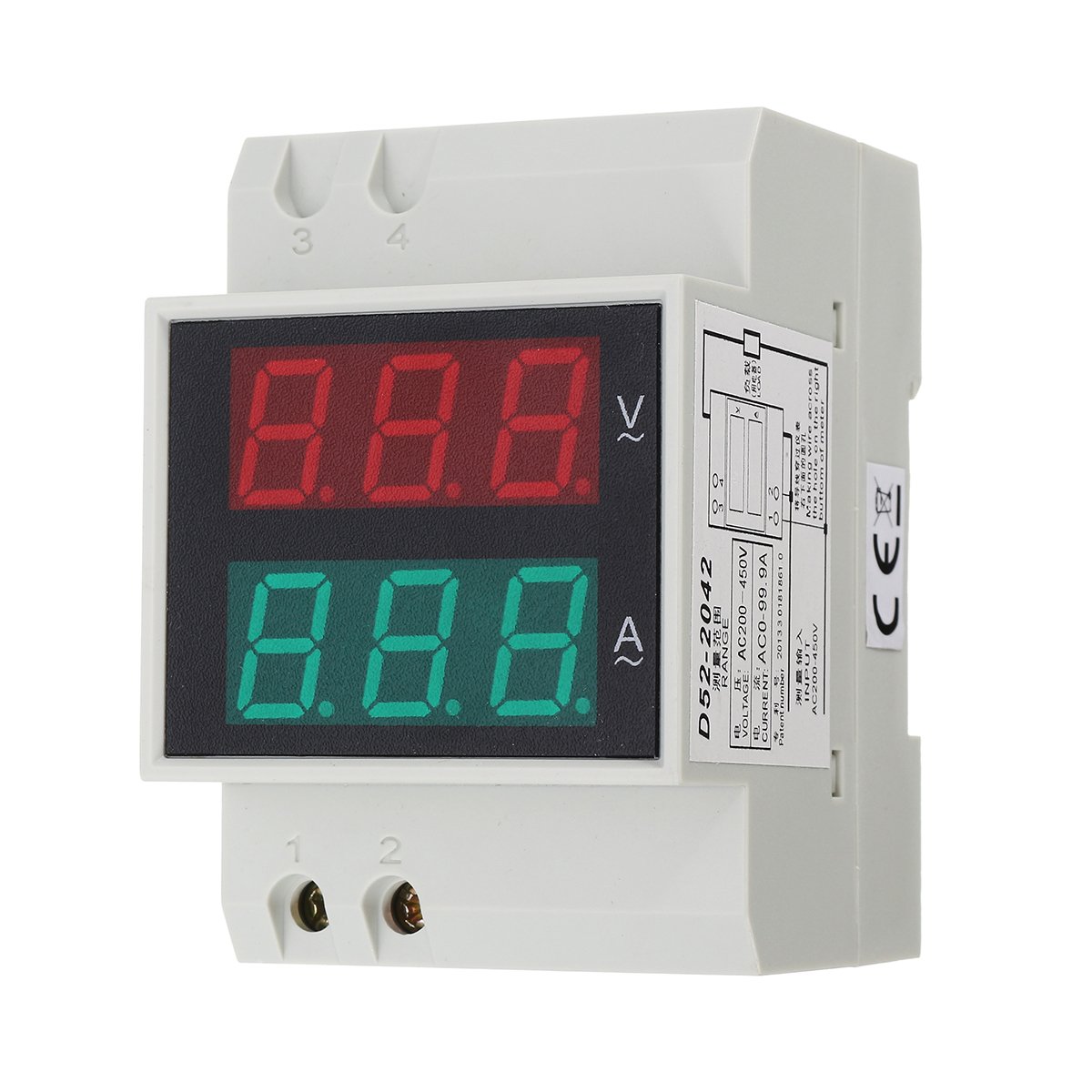

AC 200-450V Din Rail AC LED Dual Display Voltmeter Ammeter Voltage Ampere Gauge

Specifications:

Measuring Voltage RangeAC 200-450VMearuring CurrentAC 0-99.9APower Supply<0.2VAMeasuring Speed2 times/secondAccuracy1%,±2 wordsSize54×80×64 mmDin Rail Size35mm din rail

Features:

- 35mm din rail design
- LED dual display(voltage red display,ampere blue display)
- No AC transformer needed when measuring current range is 0.2-99.9A
- Can real-time monitor home appliances
- Fit for electric power systems, home,power distribution box, electrical machinery and equipment


Installation Steps:

1. Connect the measured voltage to the terminal of 1 and 2.
2.External current transformer installation as graph1:Let the wire across the hole on the current transformer,and then connect the two wires of the secondary transformer to the terminal of 3 and 4 on the meter.
3.Internal current transformer installation as graph 2:Let the wire across the hole on the current transformer(the direction do not impact the measure result).


Note:

1.If the measuring current is lower than 99.9A,you can get the AC current only making the wire across the hole which in the right side of the meter.
2.If the measuring current is higher than 99.9A,you should connect meter with a current transformer.


Package included:
1 x Din Rail AC LED Dual Display Voltmeter Ammeter
