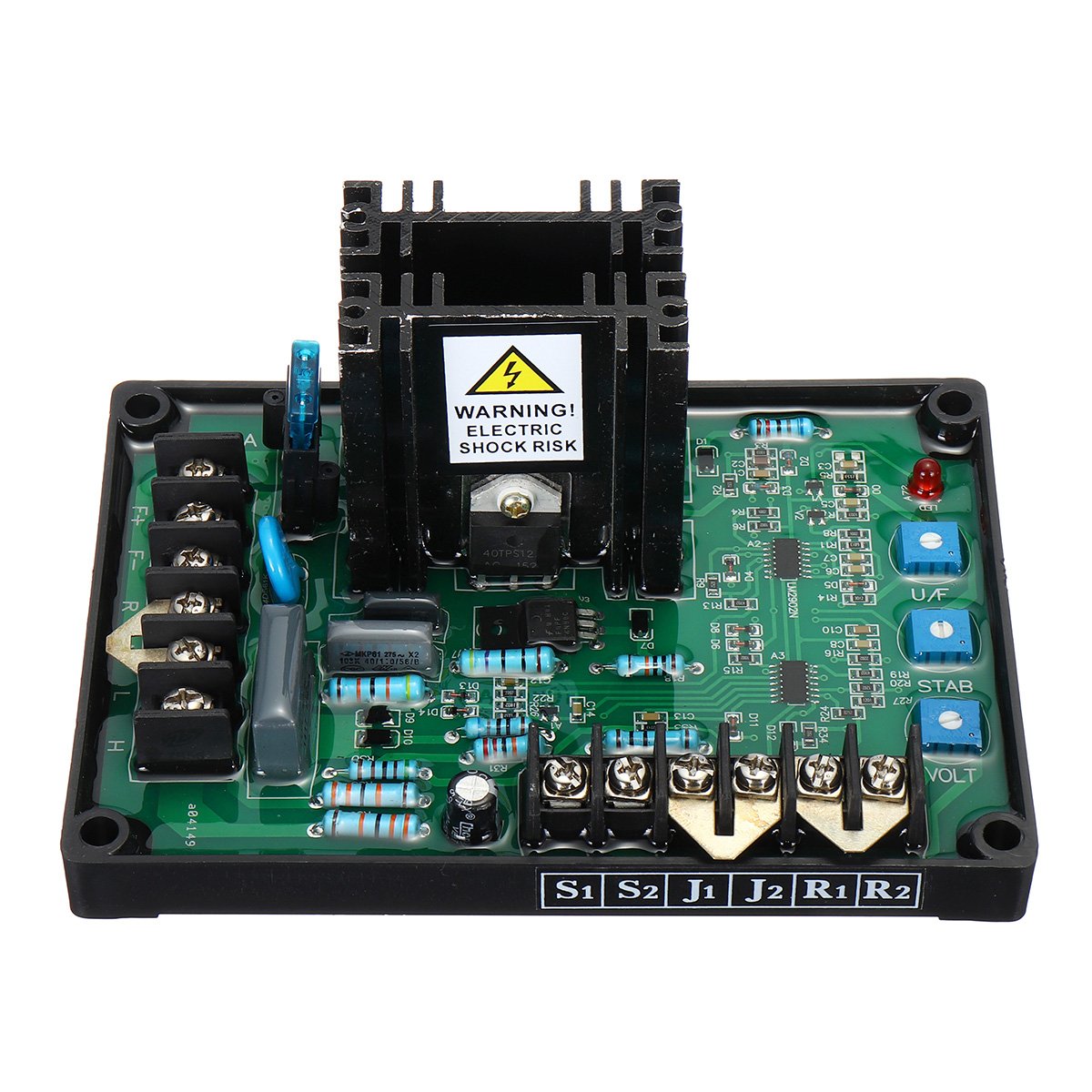

GAVR-15A Automatic Voltage Regulator Module Universal Brushless AVR Generator

Specifications:● Model: GAVR-15A● Input Voltage: 180~240V AC  50/60Hz● Output Voltage: Max 90V DC● Unit Power Dissipation: Max. 8W● Voltage Build-up: Residual volts at AVR teminal >5V AC● Current: Max 12A for 10s● Resistance: 10~100 ohms● Soft Start Ramp Time: 3 seconds● Thermal Drift: 0.05% per ℃ change in AVR ambient● External Volts Adjustment: ± 7%with 1K Ω 1 watt trimmer● Regulation: +/-0.5% RMS with 4% engine governing● Operating Temperature: -40°C to + 65°C● Storage Temperature: -40°C to + 85°C● Relative Humidity:<95%● Under Frequency:60Hz system presets knee point at 57Hz50Hz system presets knee point at 47Hz Features:● 220/400 VAC Programmable Input● Rugged Compact Design, For an easy installation
● EMI Suppression, protect the normal operation of device● With Under Frequency Protection, adjust and stable the device's frequency● Soft Start Voltage Ramping, ensure the device start up smoothly and reliably
Package Included: - 1 x GAVR-15A Automatic Voltage Regulator- 1 x English Manual
