$174.86
Add to Cart

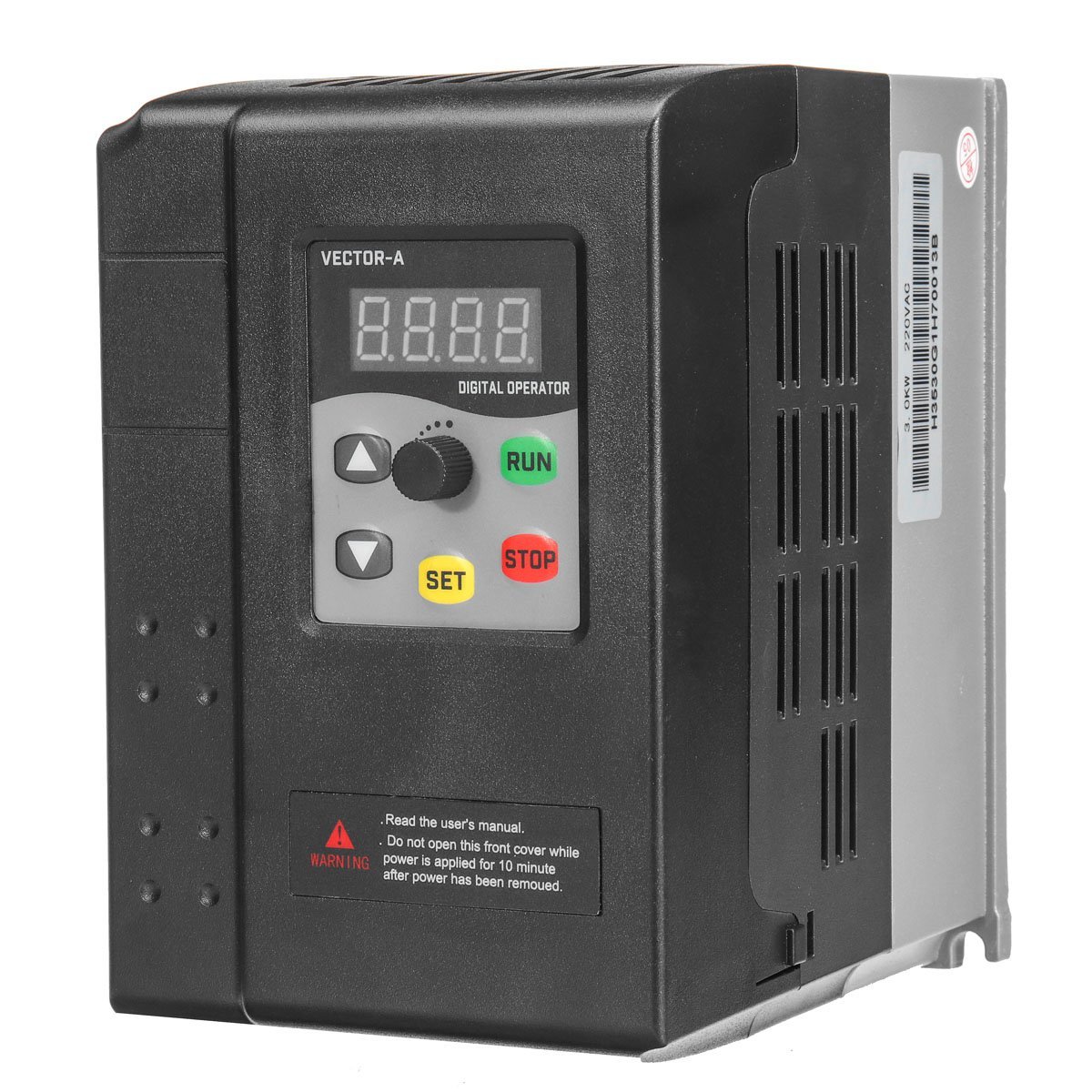

220V 3KW Variable Frequency Inverter Vector Control 1 Phase to 3 Phase Frequency Inverter
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specifications:Name:Variable Frequency InverterModel:A59993Color:blackInput:1PH AC 200-240V±10% 50-60HzOutput:3PH 0-500HzPower:3KWCurrent:13AControl Method:voltage vectorBraking Resistor:100Ω
Features:-Built-in PID control function, can easily constitute a simple automated control system.
-Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on.-Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on.-Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.
Safety Precaution:
- Do not arbitrarily reform the inverter.
- Do not do the voltage withstand test on the inverter.
- Do not connect the contactor with the output circuit.
- When power is on, do not change the wiring and terminal.
- Do not connect the power to the U, V, W output terminals.- Before wring, please make sure that the input power is off.
- The grounding terminals must be connected with the ground.
- Please connect the brake resistor according to the wiring diagram.- The wring work should be operated by the professional electrical engineer.- Cut off the main circuit power before doing some check and maintain work.- Having paused circuit wiring emergently, please make sure that the check is effective.
- Do not touch the terminals of inverter, which are very dangerous because there is high voltage on them.
- Confirm that the operation signal is cut off. Before reset the alarm device,or the inverter may start suddenly.- Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter.- Mare sure to install a protection cover before power-on. When removing the cover, be sure to make the power off.- Do not connect the output wire of the inverter with the shell, and pay attention that the output wire should not be short-circuited.- If you want to reset the inverter with the retry function, do not get close to the mechanical equipment, because the inverter will restart suddenly when the alarm stops.
Package Included:1 x Variable Frequency Inverter1 x Manual
Features:-Built-in PID control function, can easily constitute a simple automated control system.
-Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on.-Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on.-Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.
Safety Precaution:
- Do not arbitrarily reform the inverter.
- Do not do the voltage withstand test on the inverter.
- Do not connect the contactor with the output circuit.
- When power is on, do not change the wiring and terminal.
- Do not connect the power to the U, V, W output terminals.- Before wring, please make sure that the input power is off.
- The grounding terminals must be connected with the ground.
- Please connect the brake resistor according to the wiring diagram.- The wring work should be operated by the professional electrical engineer.- Cut off the main circuit power before doing some check and maintain work.- Having paused circuit wiring emergently, please make sure that the check is effective.
- Do not touch the terminals of inverter, which are very dangerous because there is high voltage on them.
- Confirm that the operation signal is cut off. Before reset the alarm device,or the inverter may start suddenly.- Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter.- Mare sure to install a protection cover before power-on. When removing the cover, be sure to make the power off.- Do not connect the output wire of the inverter with the shell, and pay attention that the output wire should not be short-circuited.- If you want to reset the inverter with the retry function, do not get close to the mechanical equipment, because the inverter will restart suddenly when the alarm stops.
Package Included:1 x Variable Frequency Inverter1 x Manual
CN, Jiangsu Sheng
