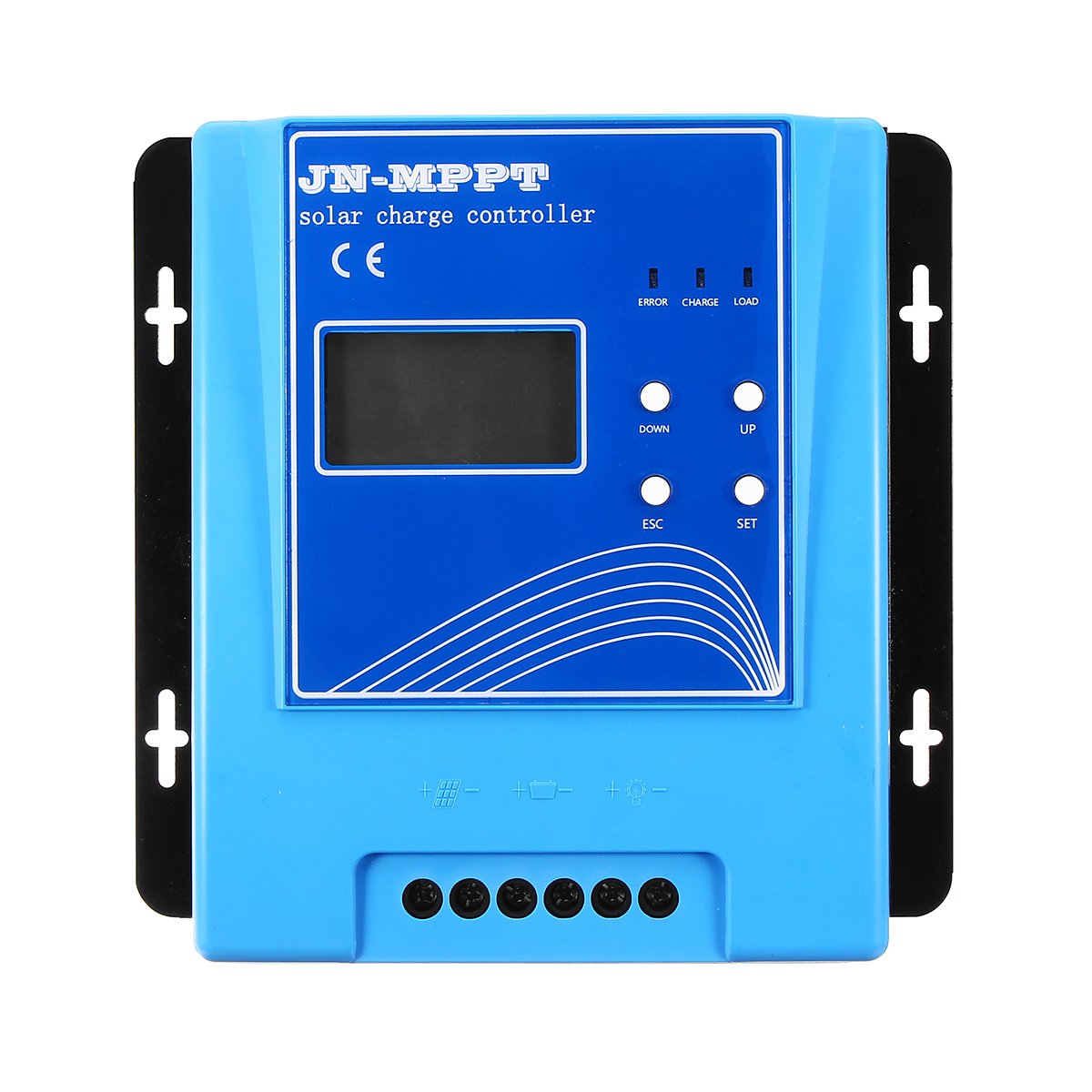

20A 12V/24V/48V MPPT Solar Charge Controller Automatic Identification 150V Input With USB-RS232 Cabl
More than 10 available
Details
Shipping: Australia: $49.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features:-Advanced Maximum Power Point Tracking(MPPT) Technology:
Tracking efficiency not less than 99.5%, 15%-20% higher than common PWM algorithm.-High Quality Components and Advanced Power Conversion Circuit:
The max. conversion efficiency can reach more than 96%; full-load efficiency can reach 97%.-Combination of Various Tracking Algorithm:
JN-MPPT series can track the maximum power point quickly.-With Current-limiting Charging Mode:
When the charging current exceeds the rated current, the controller will limit the charging current to the rated current charge.-With Internal Temperature Detection Function:
When reaches 75°C, charging current is limited to half of the rated current; when reaches 90°C charging and load are shut off.-Multiple Protection:
With over charge/over discharge/over temperature/over load and reverse connection protection.The battery temperature compensation function. Specifications:Color: Black+BlueMPPT Efficiency: >99.5%Conversion Efficiency: >96%Material: ABS+Aluminium AlloyTemperature Probe Line Length: 5mCurrent: 20ASystem Voltage: 12V/24V/48V *Photovoltaic Max. Input Voltage: 12V System: 20V~100V24V System: 40V~150V(suggest lower than 145V)48V System: 80V~150V(suggest lower than 145V)*Photovoltaic Max. Input Power: 20A: 240W/12V, 480W/24V, 960W/48VRated Working Current: 20A Output Rated Current: 15A Package included: 1* MPPT Solar Charge Controller1* Temperature Probe2* Connecting Terminal1* User Manual
Tracking efficiency not less than 99.5%, 15%-20% higher than common PWM algorithm.-High Quality Components and Advanced Power Conversion Circuit:
The max. conversion efficiency can reach more than 96%; full-load efficiency can reach 97%.-Combination of Various Tracking Algorithm:
JN-MPPT series can track the maximum power point quickly.-With Current-limiting Charging Mode:
When the charging current exceeds the rated current, the controller will limit the charging current to the rated current charge.-With Internal Temperature Detection Function:
When reaches 75°C, charging current is limited to half of the rated current; when reaches 90°C charging and load are shut off.-Multiple Protection:
With over charge/over discharge/over temperature/over load and reverse connection protection.The battery temperature compensation function. Specifications:Color: Black+BlueMPPT Efficiency: >99.5%Conversion Efficiency: >96%Material: ABS+Aluminium AlloyTemperature Probe Line Length: 5mCurrent: 20ASystem Voltage: 12V/24V/48V *Photovoltaic Max. Input Voltage: 12V System: 20V~100V24V System: 40V~150V(suggest lower than 145V)48V System: 80V~150V(suggest lower than 145V)*Photovoltaic Max. Input Power: 20A: 240W/12V, 480W/24V, 960W/48VRated Working Current: 20A Output Rated Current: 15A Package included: 1* MPPT Solar Charge Controller1* Temperature Probe2* Connecting Terminal1* User Manual
