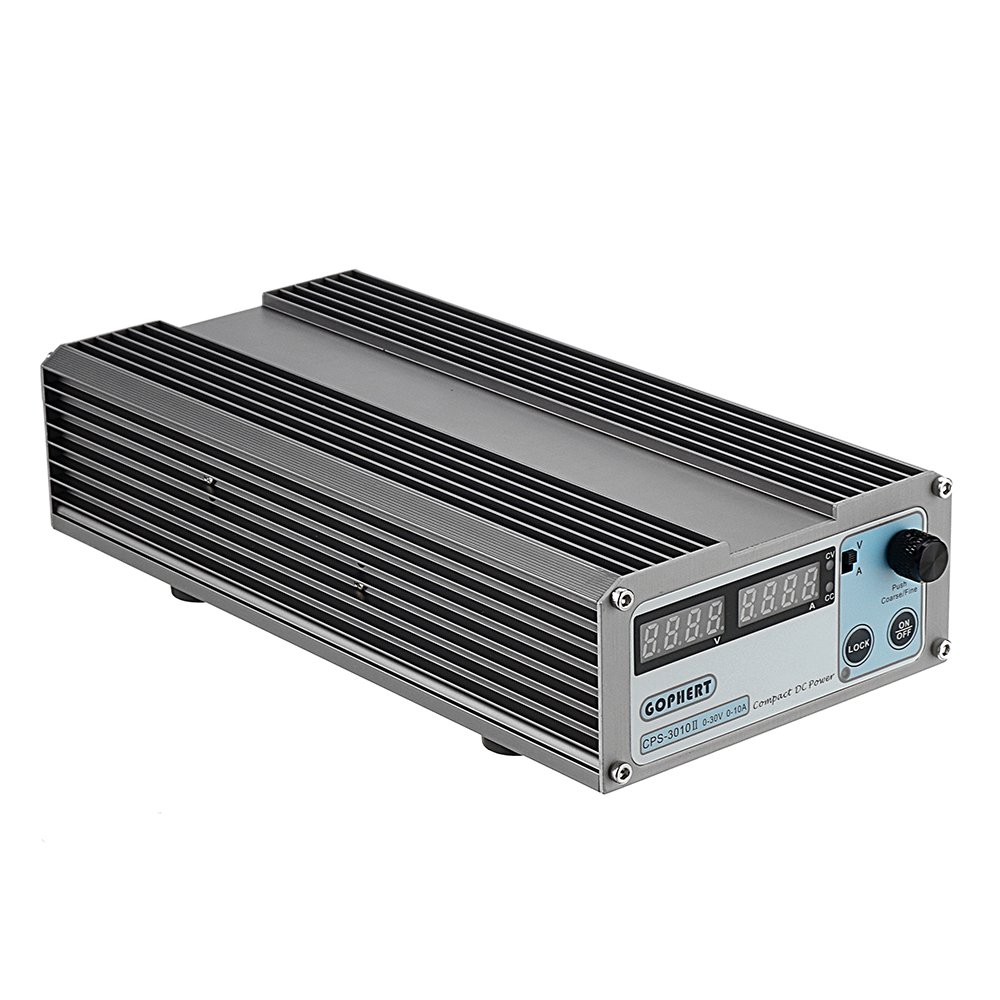

GOPHERT CPS-3010 0-30V 0-10A Compact Digital Adjustable DC Power Supply 110V/220V

Description: CPS-3010 0-30V 0-10A 110V/220V Compact Digital Adjustable DC Power Supply  Features:  Top performance cost ratioHigh power density, smallest and compactAluminum shell, lower EMI.Using Encoder to set the voltage and current.Four digital volt meter and three digital current meter.
 Switchable 110V and 220V inputs.Frequency range 45 - 65HzOutput range 0 -30VOutput Current range 0 - 10AIntelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protectionNo Load Current (220V) < 80mAVolt meter Accuracy 0.3% + 1 digitsCurrent Meter Accuracy 0.3% + 2 digitsLOCK switch Specification: Operation Voltage Range: 198 – 264V AC
Operation Frequency Range: 45 – 65HZ
Output Voltage Range: 0 – 30V
Output Current Range: 0 – 10A
Efficiency (220Vac/full load): ≥88%
Full Load Input Current(220V AC): ≤2.3A
No Load Input Current(220V AC): ≤120mA
Volt Meter Accuracy: ≤ 0.3% + 1 digits
Current Meter Accuracy: ≤ 0.3% + 3 digit

Constant Voltage:
Load Regulation (0-100%): ≤ 30mV
Line Regulation(198-264V AC): ≤ 10mV
Ripple & Noise (Peak-Peak): ≤ 40mV
Ripple & Noise (r.m.s): ≤ 5mV
Set Accuracy: ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load): ≤ 1.0ms

Constant Current:
Load Regulation(90%-10% Rated Voltage): ≤ 100mA
Line Regulation (198-264V AC): ≤ 50mA
Ripple & Noise (Peak-Peak): ≤ 100mAp-p
Set Accuracy: ≤ 0.3% + 20mA
Size(width× height× depth): 120×55×240mm
Net Weight: 1.2kg
 Package includes:  1 x CPS-3010 DC Power Supply
1 x AC Power cable
1 x User Manual Details pictures:
