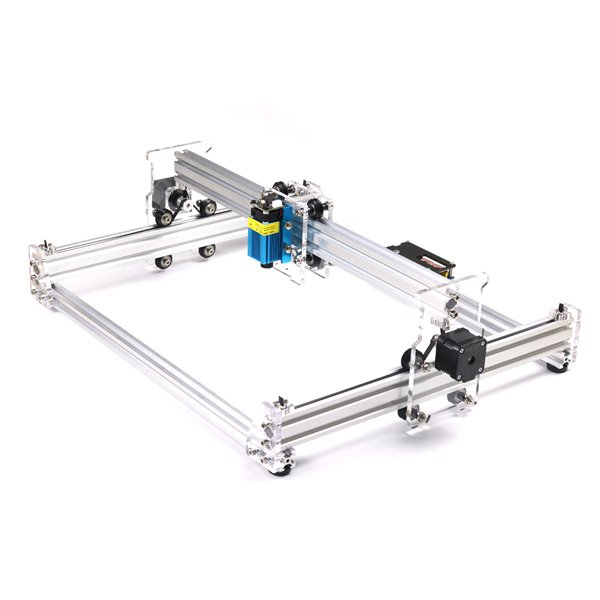

How cool the laser engraver can be!(Old version, only shows effect ):





How to Assemble it :












What our customers do with EleksLaser:







Notice:
1.The frame joint is upgraded and will be easier to assemble.(Remove corner joints and add rubber pads)
You might receive the new / old version randomly.Please make sure you know it. Thank you.
2. Videos and Customers' works do not made from this machine. Thank you.

Specifications:
BrandEleksMakerModelEleksLaser-A3 pro 0.5WControl BoardEleksMana SECommunication PortMircoUSBLaser Quick ReplaceSupportStepper Motor42H34S-1304APower InputAC100-240VSysytem SupportWin XP/7/8/10Engrave ModePhoto, Word, Scan, outline, Pixel Laser EngravingSupported Formatsjpg, bmp, svg, G-codeMaterialStainless Steel and AcrylicWorking VoltageDC 12VWorking CurrentDC 2.5ALaser Power0.5W / 500mWControl Software SystemCandle, EleksCam, T2-Laser, Benbox, GrblController,
LiteFire, Laser GRBL, etc.Engraving Accuracy0.01mmEngraving Area30x40cm / 11.81 x 15.75inch (maximum)Engraved object height limitatiion       No LimitationPackaging Size58x40x14cm / 22.83x15.75x5.51inch (L*W*H)Assembled Product Size60x46x18cm / 23.62x18.11x7.09inch (L*W*H)Package Weight4.60kgCan EngraveWood, Plastic, Paper, Bamboo, Ox Horn, Leather,
Sponge Paper, etc.Can not engraveMetal, Stone, Ceramics, Glass, Reflective or
Transparent MaterialCertificationCE, FCC, FDA(Please contact us if you need them)Functionideal for amateur laser engraving usage low-light positioning
and freedom positioning functions.Features30X38cm ultra large engraving area,gantry shape design,
no engraving height limitation.Three stepper motor drive providing faster moving speed.500mW violet laser module with heatsink, high laser engraving
power and long-term available.can print any pictures easily

Tips:
Laser machine installation, software downloading, software setting ,operating instructions and FAQ: Click here
Laser module self-checking tips link: Click here

Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect
     to the ManaSE board correctly!
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
    module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
5.  If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
    to your video and problem description. Thank you in advance.

Package List:
1 Set x 500mW Laser Engraving Machine(Need to be assembled by you)

FAQ:
1. How to assemble the kit?
    The whole assemble and operating manual link is here:Click here
    You can also watch the video to do it:Click here

2. What software can support this machine? And what image format? Engrave Mode?
    Supported Software:
