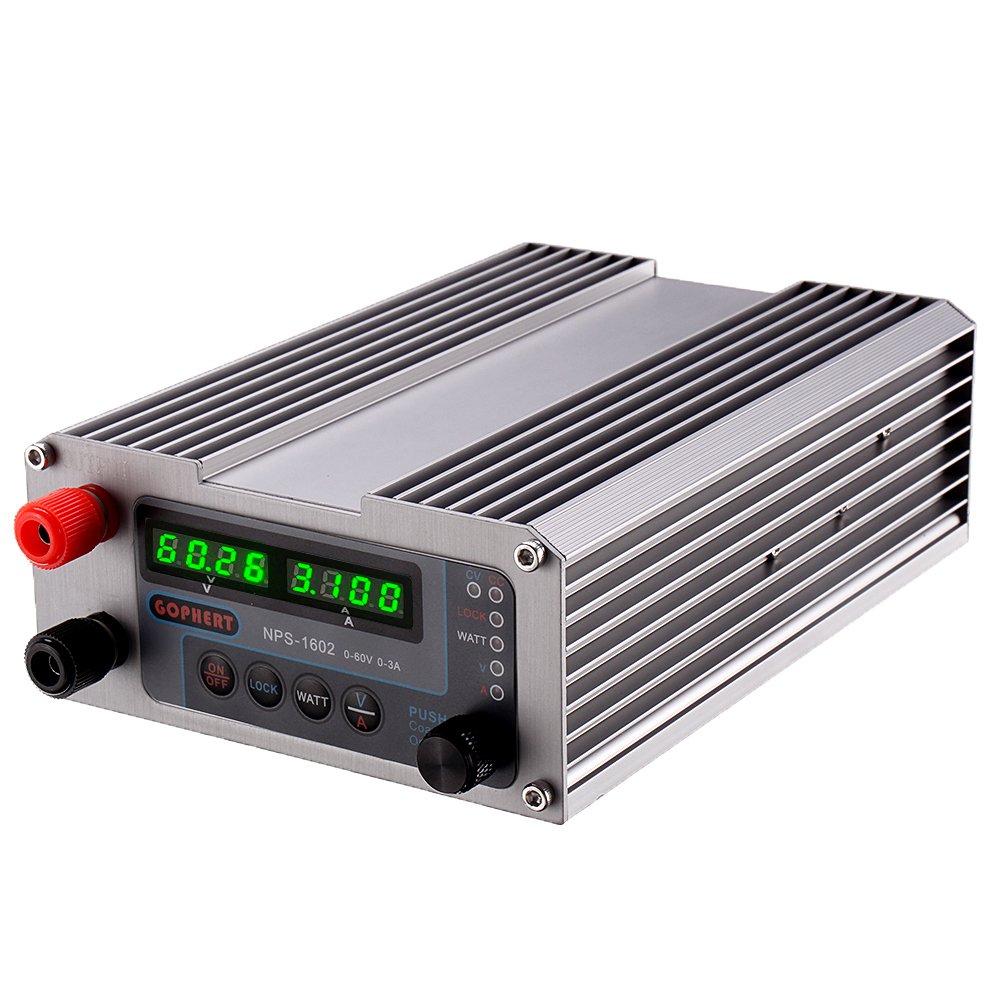

GOPHERT NPS-1602 0-60V 0-3A 110V/220V 180W Switching Digital Adjustable DC Power Supply
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
GOPHERT NPS-1602 0-60V 0-3A 110V/220V 180W Switching Digital Adjustable DC Power Supply
Features:
Top performance cost ratioHigh power density, smallest and compactAluminum shell, lower EMI.Using Encoder to set the voltage and current.Four digital volt and current meter.
Switchable 110V and 220V inputs.- Output Terminal On The Front Panel, Use More Friendly- Has Both Lock And Power Display Function (WATT)- Voltage And Current Setting Selector Used Tack Switch Instead Of - Slide Switch, Improved The Relibility- Setting And Reading Are More Accuracy,The Resolution of Amp meter is 1mA,Volt meter is 10mV- Ripple & Noise (peak-peak) less than 10mV- Zero overshoot (c.v mode and c.c mode),Protect sensitive device- High efficiency >87%- Intelligent protection: Output short circuit protection, Tracking Over Voltage Protection (OVP), Tracking Over Current Protection(OCP), Over Temperature Protection (OTP) SMT components: Reflow soldering process, higher relibility
Specification:
Brand: GOPHERTModel: NPS-1602 (60V 3A)Operation Voltage Range:198 – 264Vac/100-144VacOperation Frequency Range:45 – 65HZOutput Voltage Range:0 – 60V Output Current Range:0 – 3A Efficiency (220Vac/full load):≥ 88%Full Load Input Current (220Vac):≤ 1.7ANo Load Input Current(220V):≤ 100mAVolt Meter Accuracy:≤ 0.1% + 3 digitsAmp Meter Accuracy:≤ 0.1% + 2 digit
Plug: EU Plug (will provide adapter according to delivery country) Constant VoltageLoad Regulation (0-100%):≤ 30mVLine Regulation(198-264Vac/100-144Vac):≤ 5mVRipple & Noise (Peak-Peak):≤ 30mVRipple & Noise (r.m.s):≤ 3mVSet Accuracy:≤ 0.3% + 10mVTransient Response Time (50%-100% Rated Load):≤ 1.0ms Constant CurrentLoad Regulation (90%-10% Rated Voltage):≤ 30mALine Regulation (198-264Vac/100-144Vac):≤ 10mACurrent Ripple & Noise (Peak-Peak):≤ 30mAp-pSet Accuracy:≤ 0.2% + 2mASize(width* height* depth):120*50*180mmNet Weight:0.8KG
Package includes: 1 x NPS-1602 DC Power Supply1 x AC Power cable1 x User Manual
Details pictures:
GOPHERT NPS-1602 0-60V 0-3A 110V/220V 180W Switching Digital Adjustable DC Power Supply
Features:
Top performance cost ratioHigh power density, smallest and compactAluminum shell, lower EMI.Using Encoder to set the voltage and current.Four digital volt and current meter.
Switchable 110V and 220V inputs.- Output Terminal On The Front Panel, Use More Friendly- Has Both Lock And Power Display Function (WATT)- Voltage And Current Setting Selector Used Tack Switch Instead Of - Slide Switch, Improved The Relibility- Setting And Reading Are More Accuracy,The Resolution of Amp meter is 1mA,Volt meter is 10mV- Ripple & Noise (peak-peak) less than 10mV- Zero overshoot (c.v mode and c.c mode),Protect sensitive device- High efficiency >87%- Intelligent protection: Output short circuit protection, Tracking Over Voltage Protection (OVP), Tracking Over Current Protection(OCP), Over Temperature Protection (OTP) SMT components: Reflow soldering process, higher relibility
Specification:
Brand: GOPHERTModel: NPS-1602 (60V 3A)Operation Voltage Range:198 – 264Vac/100-144VacOperation Frequency Range:45 – 65HZOutput Voltage Range:0 – 60V Output Current Range:0 – 3A Efficiency (220Vac/full load):≥ 88%Full Load Input Current (220Vac):≤ 1.7ANo Load Input Current(220V):≤ 100mAVolt Meter Accuracy:≤ 0.1% + 3 digitsAmp Meter Accuracy:≤ 0.1% + 2 digit
Plug: EU Plug (will provide adapter according to delivery country) Constant VoltageLoad Regulation (0-100%):≤ 30mVLine Regulation(198-264Vac/100-144Vac):≤ 5mVRipple & Noise (Peak-Peak):≤ 30mVRipple & Noise (r.m.s):≤ 3mVSet Accuracy:≤ 0.3% + 10mVTransient Response Time (50%-100% Rated Load):≤ 1.0ms Constant CurrentLoad Regulation (90%-10% Rated Voltage):≤ 30mALine Regulation (198-264Vac/100-144Vac):≤ 10mACurrent Ripple & Noise (Peak-Peak):≤ 30mAp-pSet Accuracy:≤ 0.2% + 2mASize(width* height* depth):120*50*180mmNet Weight:0.8KG
Package includes: 1 x NPS-1602 DC Power Supply1 x AC Power cable1 x User Manual
Details pictures:
