$102.70
Add to Cart

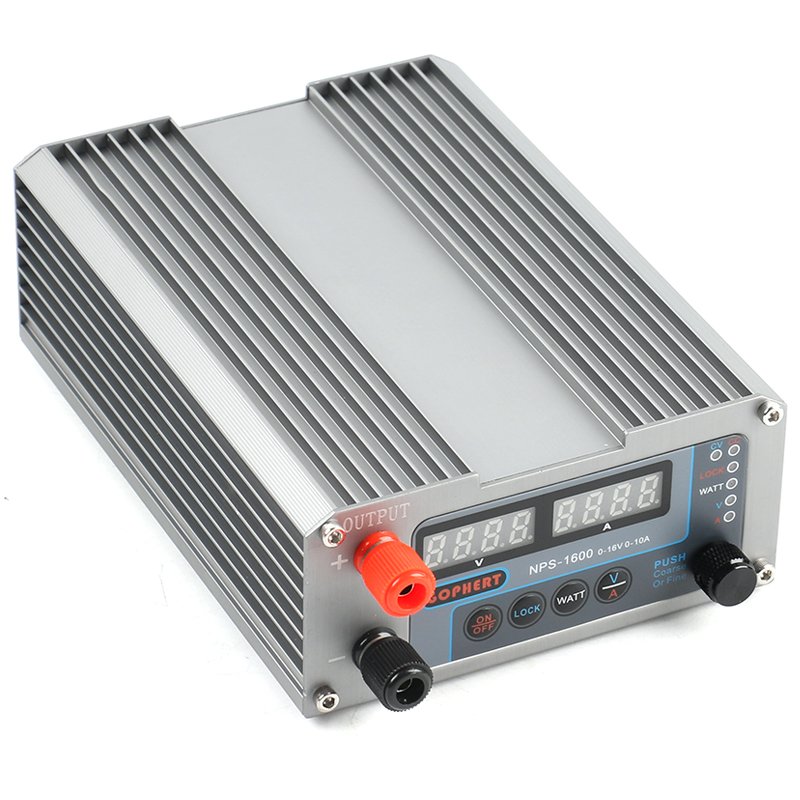

GOPHERT NPS-1600 0-16V 0-10A 110V/220V 160W Switching Digital Adjustable DC Power Supply
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description:
GOPHERT NPS-1600 0-16V 0-10A 110V/220V 160W Switching Digital Adjustable DC Power Supply
Features:
Top performance cost ratioHigh power density, smallest and compactAluminum shell, lower EMI.Using Encoder to set the voltage and current.Four digital volt and current meter.
Switchable 110V and 220V inputs.- Output Terminal On The Front Panel, Use More Friendly- Has Both Lock And Power Display Function (WATT)- Voltage And Current Setting Selector Used Tack Switch Instead Of - Slide Switch, Improved The Relibility- Setting And Reading Are More Accuracy,The Resolution of Amp meter is 1mA,Volt meter is 10mV- Ripple & Noise (peak-peak) less than 10mV- Zero overshoot (c.v mode and c.c mode),Protect sensitive device- High efficiency >87%- Intelligent protection: Output short circuit protection, Tracking Over Voltage Protection (OVP), Tracking Over Current Protection(OCP), Over Temperature Protection (OTP) SMT components: Reflow soldering process, higher relibility
Specification:
Brand: GOPHERTModel: NPS-1600 (16V 10A)Operation Voltage Range:198 – 264Vac/100-144VacOperation Frequency Range:45 – 65HZOutput Voltage Range:0 – 16V Output Current Range:0 – 10A Efficiency (220Vac/full load):≥ 86%Full Load Input Current (220Vac):≤ 1.5ANo Load Input Current(220V):≤ 80mAVolt Meter Accuracy:≤ 0.1% + 2 digitAmp Meter Accuracy:≤ 0.1% + 3 digits
Plug: EU Plug (will provide adapter according to delivery country) Constant VoltageLoad Regulation (0-100%):≤ 50mVLine Regulation(198-264Vac/100-144Vac):≤ 5mVRipple & Noise (Peak-Peak):≤ 10mVRipple & Noise (r.m.s):≤ 2mVSet Accuracy:≤ 0.3% + 10mVTransient Response Time (50%-100% Rated Load):≤ 1.0ms Constant CurrentLoad Regulation (90%-10% Rated Voltage):≤ 100mALine Regulation (198-264Vac/100-144Vac):≤ 20mACurrent Ripple & Noise (Peak-Peak):≤ 50mAp-pSet Accuracy:≤ 0.2% + 3mASize(width* height* depth):120*50*180mmNet Weight:0.8KG
Package includes: 1 x NPS-1600 DC Power Supply1 x AC Power cable1 x User Manual
Details pictures:
GOPHERT NPS-1600 0-16V 0-10A 110V/220V 160W Switching Digital Adjustable DC Power Supply
Features:
Top performance cost ratioHigh power density, smallest and compactAluminum shell, lower EMI.Using Encoder to set the voltage and current.Four digital volt and current meter.
Switchable 110V and 220V inputs.- Output Terminal On The Front Panel, Use More Friendly- Has Both Lock And Power Display Function (WATT)- Voltage And Current Setting Selector Used Tack Switch Instead Of - Slide Switch, Improved The Relibility- Setting And Reading Are More Accuracy,The Resolution of Amp meter is 1mA,Volt meter is 10mV- Ripple & Noise (peak-peak) less than 10mV- Zero overshoot (c.v mode and c.c mode),Protect sensitive device- High efficiency >87%- Intelligent protection: Output short circuit protection, Tracking Over Voltage Protection (OVP), Tracking Over Current Protection(OCP), Over Temperature Protection (OTP) SMT components: Reflow soldering process, higher relibility
Specification:
Brand: GOPHERTModel: NPS-1600 (16V 10A)Operation Voltage Range:198 – 264Vac/100-144VacOperation Frequency Range:45 – 65HZOutput Voltage Range:0 – 16V Output Current Range:0 – 10A Efficiency (220Vac/full load):≥ 86%Full Load Input Current (220Vac):≤ 1.5ANo Load Input Current(220V):≤ 80mAVolt Meter Accuracy:≤ 0.1% + 2 digitAmp Meter Accuracy:≤ 0.1% + 3 digits
Plug: EU Plug (will provide adapter according to delivery country) Constant VoltageLoad Regulation (0-100%):≤ 50mVLine Regulation(198-264Vac/100-144Vac):≤ 5mVRipple & Noise (Peak-Peak):≤ 10mVRipple & Noise (r.m.s):≤ 2mVSet Accuracy:≤ 0.3% + 10mVTransient Response Time (50%-100% Rated Load):≤ 1.0ms Constant CurrentLoad Regulation (90%-10% Rated Voltage):≤ 100mALine Regulation (198-264Vac/100-144Vac):≤ 20mACurrent Ripple & Noise (Peak-Peak):≤ 50mAp-pSet Accuracy:≤ 0.2% + 3mASize(width* height* depth):120*50*180mmNet Weight:0.8KG
Package includes: 1 x NPS-1600 DC Power Supply1 x AC Power cable1 x User Manual
Details pictures:
